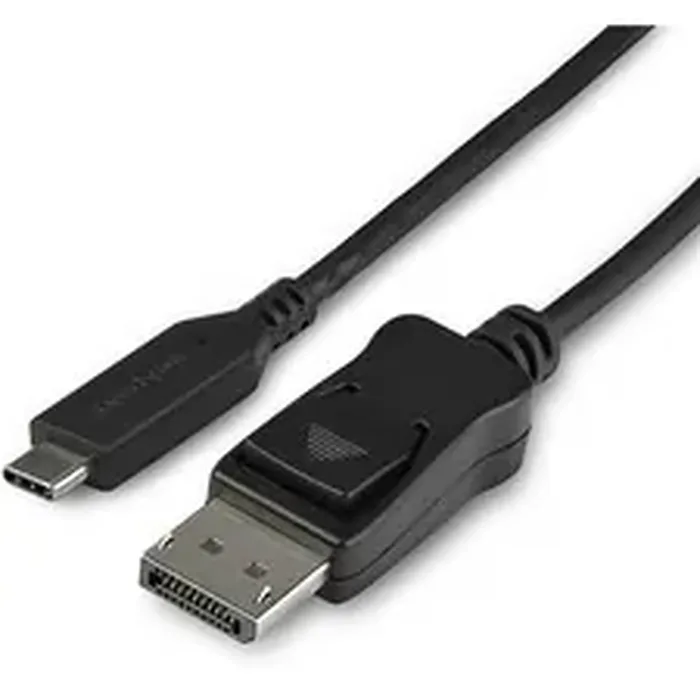

8K HBR3 DISPLAY PORT ADAPTER
Hardware
Active or Passive Adapter
Active
AV Input
USB-C
AV Output
DisplayPort - 1.4
Chipset ID
STM32F072CBY6TR
Ports
1 Performance
Audio Specifications
DisplayPort - 7.1 Channel Audio
Bandwidth
HBR3
Maximum Digital Resolutions
7680x4320 at 60Hz
Supported Resolutions
DisplayPort: 7680x4320 (8K) / 60Hz
Video Revision
DisplayPort 1.4
Wide Screen Supported
Yes Connector(s)
Connector A
1 - USB-C (24 pin) DisplayPort Alt Mode Male Input
Connector B
1 - DisplayPort (20 pin) Male Output Special Notes / Requirements
System and Cable Requirements
Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter. Environmental
Humidity
80% to 90%RH
Operating Temperature
5^oC to 35^oC (41^oF to 95^oF)
Storage Temperature
-20^oC to 60^oC (-4^oF to 140^oF) Physical Characteristics
Color
Black Whats in the Box
Included in Package
1 - USB-C to DisplayPort Adapter Item Dimension (L"xW"xH")
9 x 8 x 1

Weight
1 lb

Warranty Information
3 Year Warranty
