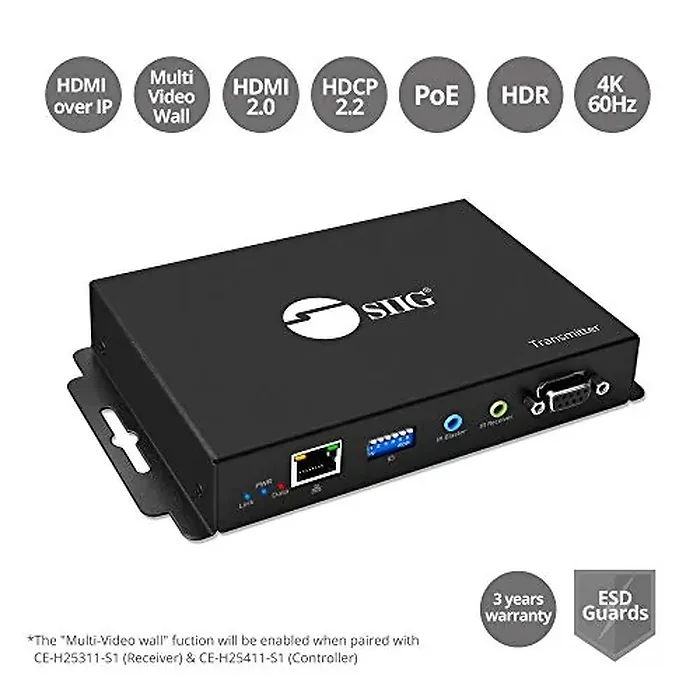

The SIIG HDMI 2.0 Video Wall Over IP Multicast Transmitter allows users to transmit high-definition video signals seamlessly over an IP network, supporting resolutions up to 4K. Ideal for video wall setups and digital signage applications, it offers a reliable and efficient solution for broadcast environments.

• Chipset: Aspeed
• Compliance: HDMI 2.0a and HDCP 2.2
• Input resolution: Up to 4Kx2K at 60 (YUV 4:4:4 8bits)
• Output resolution: Up to 4Kx2K at 30Hz
• Supported Resolutions: 480p, 720p, 1080i, 1080p, 4K at 30Hz
• Transmission Distance: 394ft (CAT6) at 4Kx2K at 30Hz
• HDMI Cable Length: Up to 5m (Input and Output)
• Audio Support: Surround sound (up to 7.1ch) or stereo digital audio
• Latency: 23ms for 1080p at 60Hz
• IR Frequency: 20KHz to 60KHz
• ESD Protection: ±15kV (air-gap) and ±8kV (contact)
• Housing Material: Metal Housing
• Housing Color: Black
• Power Adapter: Input: 100-240V / 50-60Hz, Output: DC 5V/2A
• Environmental Conditions: Operating temperature: 32 to 104 degrees F; Storage temperature: -4 to 140 degrees F; Relative humidity: 20% to 90% RH (non-condensing)
• Certifications: FCC, CE, RoHS
• Item Dimensions: 8 x 2 x 4 inches
• Weight: 1.08 lbs
• Warranty: 3 years
