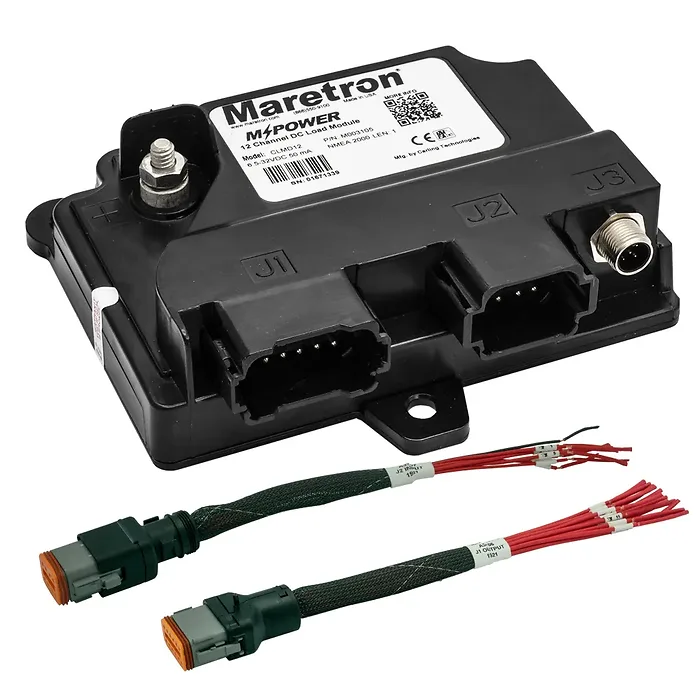

Maretron MPower 12 Channel DC Load Module

The MPower 12 Channel DC Load Module is specifically designed for boats of varying sizes that deal with smaller electrical loads. It features a compact design and includes a 12-channel load controller that helps efficiently manage power distribution. This module is equipped with twelve circuit breakers: two capable of handling 12 amps, six for 10 amps, and four for 5 amps, summing up to a total capacity of 75 amps. This versatility allows for the safe use of a wide range of electrical devices.

With Maretron’s N2KAnalyzer software, users can adjust the trip settings of each breaker to accommodate lower current thresholds, thus enhancing overload protection. The CLMD12 can also integrate with up to seven hard-wired switches, providing added functionality for controlling breaker states and integrating with other systems like alarms.

In addition to being versatile, the module monitors real-time current for each breaker, empowering users to troubleshoot issues like overcurrent faults or burnt-out bulbs. For manual operation, the optional MPower 12-Channel Bypass Module can be paired for direct access to loads.

• NMEA 2000® compatible for seamless integration
• IP67 rated for superior water resistance
• Ignition protection for safe operation
• Opto-isolated to prevent ground loops
• Twelve dimmable Electronic Circuit Breakers for remote control
• Support for multiple load types, including lights and pumps
• Individual current monitoring for each breaker
• Customizable power-up states (ON, OFF, PREVIOUS)
• Secure against accidental activation
• Configurable discrete inputs for various applications
• Automatic shutdown features for overcurrent and thermal protection
