The DGS-1510 Series is D-Link?s latest generation of SmartPro switches with 10G port connectivity, making them ideal for deployment in SME/SMB aggregation environments. The DGS-1510 Series provides a reliable and scalable interconnection between core switches and edge switches with rich capabilities and simplified flexibility. Available in 16, 24 or 48 10/100/1000 Mbps port models, with additional fiber ports for Physical Stacking and / or Uplinks. The DGS-1510 Series PoE-enabled switches are ideal for businesses looking to power VoIP phones, wireless access points or network cameras. The DGS-1510-28P 24-port PoE Switch supports up to 30W of power output giving you flexibility in power allocation for a variety of powered devices. This enables you to scale your operations to meet business growth and incorporate new technologies all with affordable installation costs.

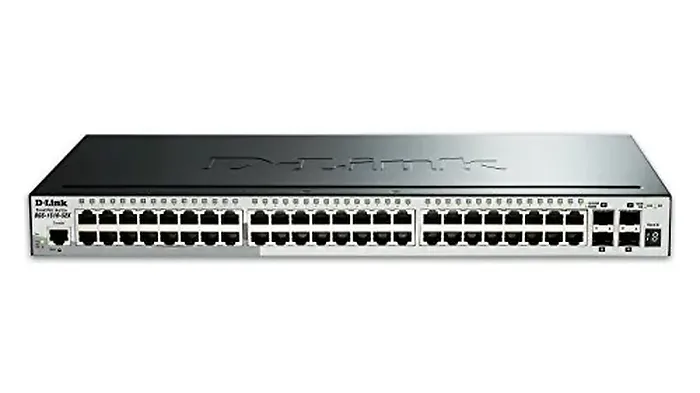

The DGS-1510 Series is D-Links latest generation of SmartPro switches with 10G port connectivity, making them ideal for deployment in SME/SMB core environments. The DGS-1510 Series provides a reliable, scalable, and modular interconnection between core switches and edge switches with rich capabilities and simplified flexibility. 48 10/100/1000 Mbps port models, these switches also include four optical ports including 2 Gigabit SFP and 2 10G SFP+ ports. The 48 port versions are also available with 4 10G SFP+ ports instead of the 2 Gigabit plus 2 10G configuration.



10G SFP+ Stacking/Uplink Ports


Depending on whether linear or fault-tolerant ring stacking is implemented, users can use one or two 10-Gigabit SFP+ ports to create a physical stack. Six units or 288 Gigabit ports can be configured as a stack using optional direct attach cables to provide high bandwidth on the DGS-1510 Series with cost efficiency. Users can mix from any of the DGS-1510 SmartPro series in a single stack to allow simultaneous and easy configuration, management and troubleshooting.

Port Standards and Functions
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
802.3ae 10 GbE,
IEEE 802.3x Flow Control for Full-Duplex Mode,
Auto-negotiation
Number of Ports
DGS-1510-52X: 48 10/100/1000 Mbps, 4 10G SFP+

Network Cables
UTP Cat. 5, Cat. 5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.)
Full/Half Duplex
Full/half duplex for 10/100 Mbps and Gigabit speed

Media Interface Exchange
Auto or configurable MDI/MDIX
Performance
Switching Capacity
DGS-1510-52X: 176 Gbps
Transmission Method
Store-and-forward
MAC Address Table
16,000 entries per device
MAC Address Update
Up to 512 static MAC entries,
Enable/disable auto-learning of MAC addresses
Maximum 64 bytes Packet Forwarding Rate
DGS-1510-52X: 130.95 Mpps
Packet Buffer Memory
DGS-1510-52X: 3 MB per device
Physical and Environmental
AC Input
100 to 240 VAC 50/60 Hz internal universal power supply
Maximum Power Consumption
DGS-1510-52X: 44.2 W
Standby Power Consumption
DGS-1510-52X: 28.6W/100V 28.9W/240V
Smart Fan Quantity
DGS-1510-52X: 2
Acoustics
DGS-1510-52X: 45.8 dB(A)
Physical and Environmental
AC Input
100 to 240 VAC 50/60 Hz internal universal power supply
Maximum Power Consumption
DGS-1510-52X: 44.2 W
Standby Power Consumption
DGS-1510-52X: 28.6W/100V 28.9W/240V
Smart Fan Quantity
DGS-1510-52X: 2
Acoustics
DGS-1510-52X: 45.8 dB(A)
Heat Dissipation
DGS-1510-52X: 138.8 BTU/hr
Diagnostic LEDs
Power/Stacking ID/Fan (per device),
Link/Activity/Speed (per 10/100/1000 Mbps port),
Link/Activity/Speed (per Gigabit SFP port),
Link/Activity/Speed (per 10G SFP+ port)
Certifications
CE, FCC, C-Tick, VCCI, BSMI, CCC
Safety cUL, CB
Item Dimension (L"xW"xH"):
14.4 x 21.85 x 4.0

Weight:
7.95 lb

Warranty Information:
Limited Lifetime
