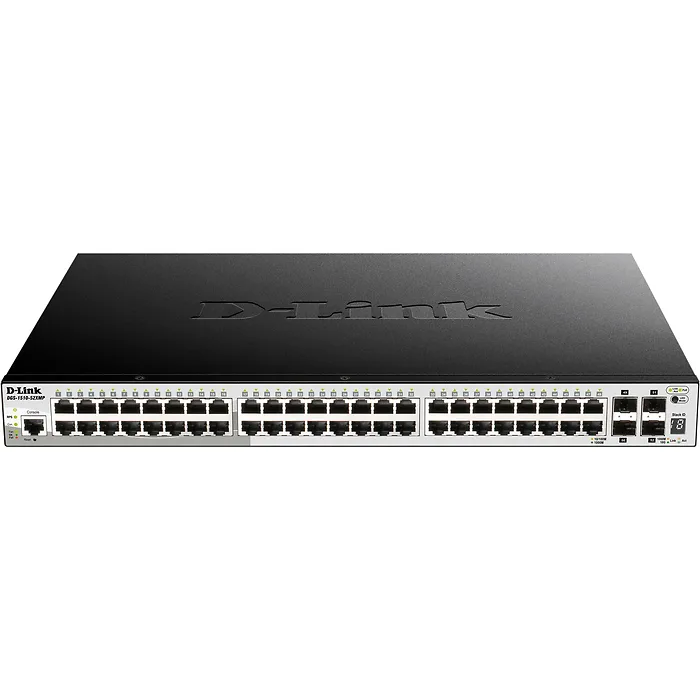

The D-Link DGS-1510 Series is the latest generation of SmartPro switches with 10G capability, available with 16, 24, or 48 10/100/1000 Mbps ports plus additional fiber ports for physical stacking or uplinks. The series includes three PoE-capable switches that provide additional flexibility for businesses looking to power IP phones, wireless access points, or IP cameras using existing network infrastructure. The combination of high bandwidth connections and PoE support make the DGS-1510 Series ideal for Small-Medium Enterprise (SME) and Small-Medium Business (SMB) environments.
General
Hardware version : DGS-1510-52XMP: A1
Port Standards and Functions : IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
802.3ae 10 GbE
IEEE 802.3x Flow Control for Full-Duplex Mode
Auto-negotiation
Number of Ports : DGS-1510-52XMP: 48 10/100/1000 Mbps PoE capable, 4 10G SFP+
Network Cables : UTP Cat. 5, Cat. 5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.)
Full/Half Duplex : Full/half duplex for 10/100 Mbps and Gigabit speed
Media Interface Exchange : Auto or configurable MDI/MDIX
Performance
Switching Capacity : DGS-1510-52XMP: 176 Gbps
Transmission Method : Store-and-forward
MAC Address Table : 16,000 entries per device
MAC Address Update : Up to 512 static MAC entries,
Enable/disable auto-learning of MAC addresses
Maximum 64 bytes Packet Forwarding Rate: DGS-1510-52XMP: 130.95 Mpps
Packet Buffer Memory : DGS-1510-52XMP: 3 MB per device
PoE (DGS-1510-28P, DGS-1510-28XMP and DGS-1510-52XMP only)
PoE Standard: DGS-1510-52XMP: IEEE 802.3af, 802.3at
PoE Capable Ports Ports: DGS-1510-52XMP: 1 to 48: up to 30 W
PoE Power Budget: DGS-1510-52XMP: Max 370 W (without DPS-700) Max. 740W (with DPS-700)
Physical and Environmental
AC Input : 100 to 240 VAC 50/60 Hz internal universal power supply
Maximum Power Consumption : DGS-1510-52XMP: 486.9 W (PoE on), 58.8 W (PoE off)
Standby Power Consumption: DGS-1510-52XMP: 40.1 W
Smart Fan Quantity: DGS-1510-52XMP: 4
Acoustics: DGS-1510-52XMP: 55.4 dB(A)
Heat Dissipation: DGS-1510-52XMP: 1660.33 BTU/hr
Operation Temperature : 23 to 122 ^oF (-5 to 50 ^oC)
Storage Temperature : -4 to 158 ^oF (-20 to 70 ^oC)
Operation Humidity : 0% to 95% non-condensing
Storage Humidity : 0% to 95% non-condensing
Dimensions : DGS-1510-52XMP: 17.36 x 9.84 x 1.73 inches (440 x 250 x 44 mm)
19 standard rack mounting width 1U
Weight DGS-1510-52XMP: 11.93 lbs (5.41 kg)
Diagnostic LEDs : Power/Stacking ID/Fan (per device),
Link/Activity/Speed (per 10/100/1000 Mbps port),
Link/Activity/Speed (per Gigabit SFP port),
Link/Activity/Speed (per 10G SFP+ port)
Certifications : CE, FCC, C-Tick, VCCI, BSMI, CCC
IPv6 Ready Logo Phase 2 (DGS-1510-20/-28/-28X/-28P/-28XMP only)
Safety: cUL, CB
MTBF: DGS-1510-20: 882,152 hr.
DGS-1510-28: 516,593 hr.
DGS-1510-28P: 275,428 hr.
DGS-1510-28X: 516,593 hr.
DGS-1510-28XMP: 274,796 hr.
DGS-1510-52: 433,434 hr.
DGS-1510-52X: 416,789 hr.
Item Dimension (L inchxW inchxH inch)
21 x 19 x 5 Weight
15.75lb Warranty Information
Lifetime
