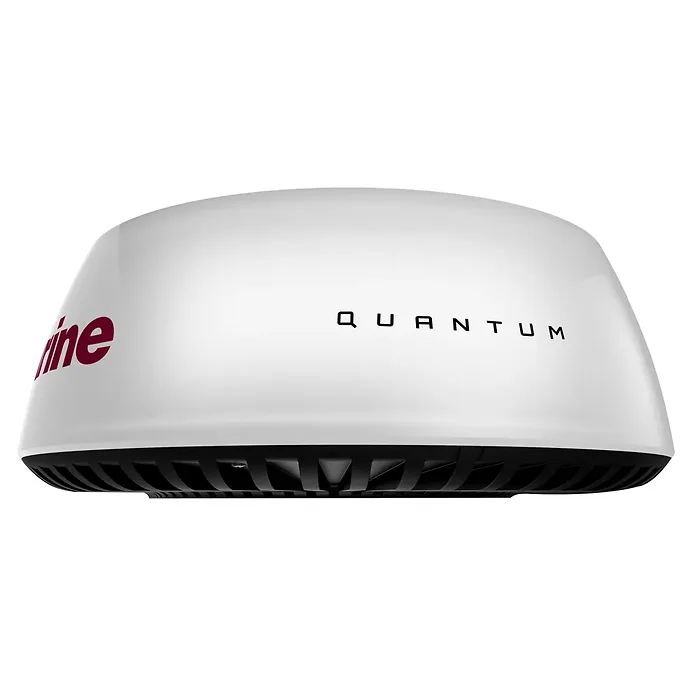

Raymarine Quantum™ Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included

Quantum Q24C Wi-Fi Radar with 10M Power Cable

Raymarine Quantum Radar, by FLIR, represents the next generation of marine radar featuring advanced CHIRP pulse compression technology.

This compact solid-state radar sets a new standard, delivering superior imaging quality on both long and very short ranges. Integrated Wi-Fi and a thin cabling system simplify installation, while Quantum's energy-efficient design provides safe radiated emissions and significantly reduces power consumption.

Outstanding Radar Imaging

FLIR's exclusive ATXT technology enables advanced target separation, showcasing boats, landmarks, rocks, buoys, and weather cells with exceptional clarity and resolution.

CHIRP Pulse Compression

Experience excellent short-range detection and enhanced target details with a minimum range of 18' (6m). CHIRP pulse compression ensures that more energy reaches each target, resulting in superior imaging over longer distances.

Small Target Detection

Thanks to CHIRP technology, Quantum is capable of identifying small, weak targets, even when they are close to stronger returns.

Simplified Installation

Establish a simple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD. The small diameter power cable of the Quantum makes it easy to install in tight spaces. This system is easy to upgrade, using the same bolt pattern as previous radar generations, and includes an optional adapter cable that eliminates the need to run new radar cables.

Energy Efficient & Lightweight Design

Weighing 50% less than conventional magnetron radars, Quantum ensures safe emissions, thanks to its low-power solid-state transmitter. It boasts extremely low power consumption — just 17 Watts during transmission and 7 Watts on standby, extending the battery life of your vessel while under sail.

• Advanced CHIRP pulse compression technology
• Exceptional imaging for both short and long ranges
• Integrated Wi-Fi for easy connectivity
• Lightweight design, 50% less than traditional radars
• Safe radiated emissions with low power consumption
• Easy installation with a small diameter power cable
• Small target detection capability in challenging situations
