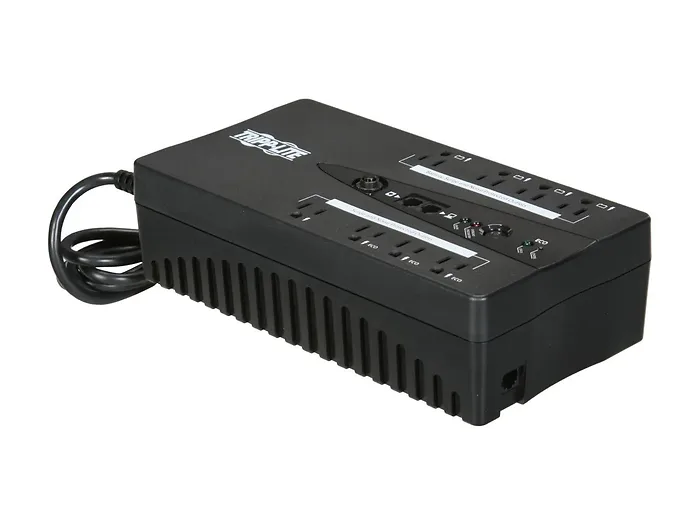

Tripp Lite by Eaton ECO550UPS 550VA Ultra-compact Desktop/Tower/Wall Mount UPS - Ultra-compact Desktop/Tower/Wall Mount - 6.50 Hour Recharge - 1.20 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC Output - Single Phase - Pure Sine Wave - USB - 10 x NEMA 5-15R Receptacle(s)

MFG No: ECO550UPS
SKU No: V3MG6XZUUZ
UPC: 037332211064
MFG. Name: Tripp Lite
Available: 8
Condition: New

$126.12

This Tripp Lite 550VA 300W Standby UPS is the perfect solution for protecting your devices from power outages.

With 10 NEMA 5-15R outlets, it provides reliable power to multiple devices at once.
The 120V 50/60 Hz ECO550UPS model is designed for use in the United States and Canada, and is compatible with a variety of devices.
The brand name Tripp Lite is synonymous with quality and reliability, and this UPS lives up to that reputation.
It is ideal for use in homes, offices, and other commercial settings where power protection is necessary.
Whether you need to protect your computer, server, or other devices, this UPS is the perfect choice.

Plug/Connector Type: NEMA 5-15P
Receptacles: 8 x NEMA 5-15R - Surge-protected
Interfaces/Ports: USB
Backup/Run Time: 0.28 Hour
Battery Life: 3 Year to 6 Year - Depends On Usage
Battery Recharge Time: 15 Hour Usable Capacity
Load Capacity: 550 VA/300 W
Input Voltage: 110 V AC
Input Voltage Range: 120 V AC Nominal
Output Voltage: 115 V AC to 120 V AC Nominal
Output Voltage: 115 V AC Battery Operation
Height: 3.1"
Width: 5.7"
Depth: 10.9"
Form Factor: Desktop
Weight (Approximate): 6.60 lb
Country of Origin: China

Product may differ from image shown

General Information

Manufacturer:Eaton Corporation
Manufacturer Part Number:ECO550UPS
Manufacturer Website Address:http://www.eaton.com
Brand Name:Tripp Lite by Eaton
Product Series:ECO
Product Model:ECO550UPS
Product Name:ECO550UPS 550VA Ultra-compact Desktop/Tower/Wall Mount UPS
Marketing Information:Ultra-high efficiency ECO Series UPS System saves energy by automatically powering off unused computer accessories when the computer is not in use. UPS system uses less electricity than conventional models. Design includes four battery-supported outlets for computer, monitor and two vital system peripherals, plus four additional surge suppression-only outlets for accessories not requiring battery support. Three of the surge-only outlets are designated Eco outlets that can be configured to automatically power off when the computer enters standby mode or is shutdown. USB port enables UPS configuration options and unattended system shutdown without data loss in the case of extended power failure. UPS system meets RoHS standards. 550VA/300-watt power handling ability supports entry-level PC systems for up to 17 minutes during power fail conditions.

Packaged Quantity:1 Each
Product Type:Standby UPS

Technical Information

Plug/Connector Type:NEMA 5-15P
Receptacle Type:NEMA 5-15R
Receptacle Detail:10 x NEMA 5-15R
Number of Surge-only Outlets:5
Dataline Protection:RJ-11
Protection Type:

EMI / RFI
Brownout
Power Failure

Overload Protection:Yes
Cord Length:6 ft
Transfer Time:6 ms
Phase:Single Phase
Application/Usage:

Retail
Hospital
Computer Peripheral

Power Description

Load Capacity (VA):550 VA
Load Capacity (Watt):300 W
Input Voltage:120 V AC
Output Voltage:

110 V AC
115 V AC
120 V AC

Output Frequency:60 Hz
Waveform Type:Pure Sine Wave
Surge Energy Rating:316 J

Management

Alarm:

Battery Fault
Overload
Low Battery

Controls/Indicators

Status Indicators:

2 LED Indicator:

Line power
Battery power status

Main Power Switch Controls :

ON
OFF
SELF-TEST
ALARM CANCEL
Second switch enables "ECO" outlet switching

Interfaces/Ports

USB:Yes
USB (HID Compliant) Port:Yes

Battery Information

DC System Voltage:12 V DC
Battery Characteristics:Valve-regulated
Battery Chemistry:Lead Acid
Backup/Run Time (Full Load):1.20 Minute
Backup/Run Time (Half Load):5 Minute
Battery Life:6 Year
Typical Battery Recharge Time:6.50 Hour
Replaceable Battery:Yes

Environmental Conditions

Minimum Operating Temperature:32°F (0°C)
Maximum Operating Temperature:104°F (40°C)
Storage Temperature:5°F (-15°C) - 133°F (56.1°C)
Maximum Storage Elevation:6561 ft
Sound Emission:40 dB
Thermal Dissipation:1.17 W

Physical Characteristics

Color Family:Black
Product Color:Black
Height:4.1"
Width:4.3"
Depth:7.3"
Form Factor:Ultra-compact Desktop/Tower/Wall Mount
Weight (Approximate):5.20 lb

Miscellaneous

Package Contents:

ECO550UPS 550VA Ultra-compact Desktop/Tower/Wall Mount UPS

USB Cable

Owner's Manual

Additional Information:

Keyhole mounting slots enable wall-mount installation
Compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications
Switches to battery power as line voltage decreases to 99 volts or less. Resets back to line power mode as line voltage increases to 104V or higher
Switches to battery power as line voltage increases to 139V or higher. Resets back to line power mode when line voltage decerases to 135V or lower
Basic desktop PCs for home/home-office use, network terminals, audio/video and home entertainment systems and other sensitive electronic devices
550VA / 300 watt UPS provides battery-derived AC output during brownouts and power failures to support entry-level desktop computer with 15 inch LCD monitor up to 17 minutes

Certifications & Standards:

Tested to :

UL1778 (USA)
CSA (Canada)
NOM (Mexico)
Class B (EMI)
FCC Part 68 / Industry Canada (telecommunication)

Software Included:PowerAlert software available via free download
Recycled:No
Assembly Required:No
Energy Star:Yes
Country of Origin:Vietnam
Environmentally Friendly:Yes
Energy Efficiency Certification:ENERGY STAR 2.0
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty:3 Year
Additional Warranty Information:

2 year
100,000 connected equipment guarantee
