General Information

---

Manufacturer:Eaton Corporation
Manufacturer Part Number:INTERNET550U
Manufacturer Website Address:http://www.eaton.com
Brand Name:Tripp Lite by Eaton
Product Line:Internet Office
Product Model:INTERNET550U

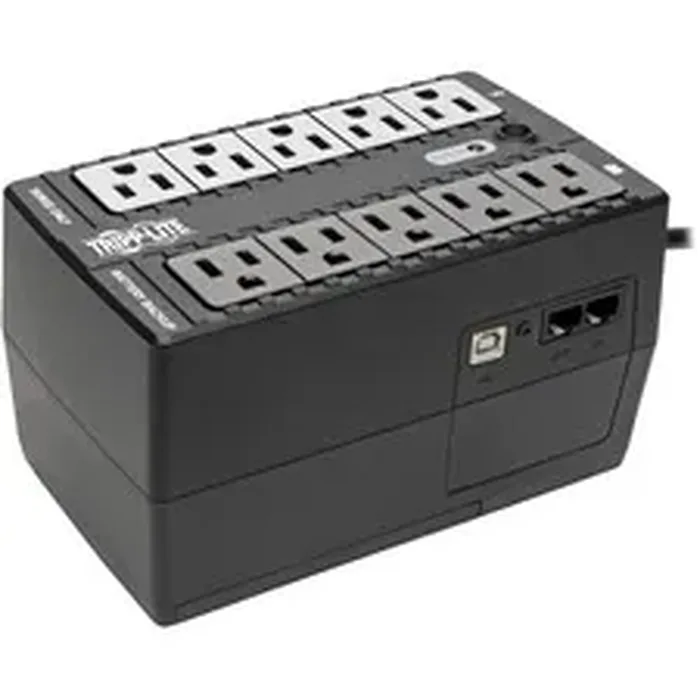

Product Name:Internet Office INTERNET550U 550VA UPS
Marketing Information:UPS offers standby protection for PCs and peripherals to prevent data loss and system downtime by providing battery-supported AC output during brownouts and blackouts. Two of the 8 output receptacles are widely spaced to accommodate large transformer plugs. Four outlets with full battery support and surge suppression protect computers, monitors and other vital system components from loss of power. Four additional outlets with surge suppression-only are ideal for printers and other accessories not requiring battery support. Single-line, telephone suppression jacks protect modem or other peripherals with a standard dialup or DSL phone line connection. HID-compliant USB interface enables integration with built-in power management and auto-shutdown features of Windows and Mac OS X. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 550VA/300 watt power handling ability supports entry-level PCs for up to 17 minutes during power failures.

Packaged Quantity:1 Each
Product Type:Standby UPS

Technical Information

---

Plug/Connector Type:NEMA 5-15P
Receptacle Type:NEMA 5-15R
Receptacle Detail:10 x NEMA 5-15R
Number of Battery & Surge Outlets:5
Number of Surge-only Outlets:5
Dataline Protection:

• RJ-11
• RJ-45

Protection Type:

• Black Out
• Brownout
• Surge
• Line Noise
• Over Voltage

Cord Length:5 ft
Transfer Time:6 ms
EMI/RFI Noise Filter:Yes
Phase:Single Phase
Energy Saving:Greater than 95% efficiency - GREEN UPS
Application/Usage:

• Home/Office
• Media Center
• Commercial
• Computer
• Router
• Printer
• Storage Device
• TV
• Blu-ray Player
• Gaming Console
• Media Player
• DVR
• Audio System

Power Description

---

Load Capacity (VA):550 VA
Load Capacity (Watt):300 W
Input Voltage:120 V AC
Input Current:12 A
Output Voltage:

• 110 V AC
• 115 V AC
• 120 V AC

Output Frequency:60 Hz
Waveform Type:Pure Sine Wave
Surge Energy Rating:316 J

Management

---

Alarm:

• Low Battery
• Fault
• Overload
• Replace Battery

Controls/Indicators

---

Status Indicators:

1 x Status LED reports operating mode and fault status

Interfaces/Ports

---

USB (HID Compliant) Port:Yes

Battery Information

---

DC System Voltage:12 V DC
Backup/Run Time (Full Load):1.20 Minute
Backup/Run Time (Half Load):5 Minute
Typical Battery Recharge Time:6.50 Hour
Replaceable Battery:Yes

Environmental Conditions

---

Storage Temperature:5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:10000 ft

Physical Characteristics

---

Height:4.1"
Width:4.3"
Depth:7.3"
Form Factor:Ultra-compact Desktop/Tower/Wall Mount
Weight (Approximate):3.97 lb

Miscellaneous

---

Package Contents:

• Internet Office INTERNET550U 550VA UPS
• USB cable
• Owner's Manual

Certifications & Standards:

Energy Star

Software Included:PowerAlert Software
Recycled:No
Assembly Required:No
Country of Origin:Vietnam
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:3 Year
Additional Warranty Information:

• 2 year warranty.

• 100,000connected equipment insurance (USA, Puerto Rico & Canada Only).
