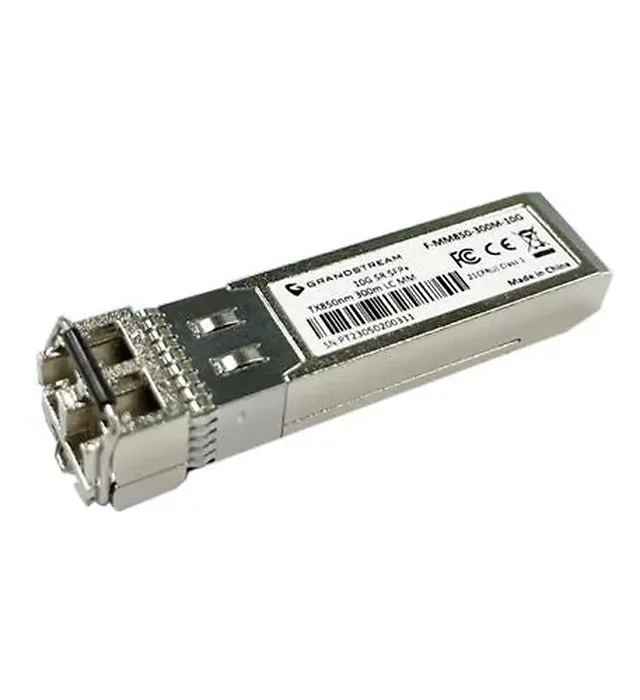

- Hot-pluggable small-form factor transceiver modules integrated with the high sensitivity PIN receiver and signal conditioner for 1.25/10 Gigabit Ethernet applications. SFP modules support very low EMI and excellent ESD protection
- Fiber Mode: Multi-Mode Fiber
- Connector Type: Duplex LC
- DDM: 10Gbps SFP+
- Nominal Wavelength: 850nm
- Data Rate: 10Gbps SFP+
- Max Power Consumption: 1W
- Transfer Distance: 0.3km
- TX Power: -6 to -1dBm, +-3dB
- RX Power: -11.1 to 0.5dBm, +-3dB
- Operation Voltage: 3.3V+-0.3V
- Environmental: Operation: 0? to 70?, humidity: 5% to 85% Storage: -40? to 85?
- Unit Weight: 18.50g
- Standards: SFF-8472, SFP+ MSA, IEEE 802.3ae, RoHS-6
Jacks/Modules: Yes
Color: Silver
