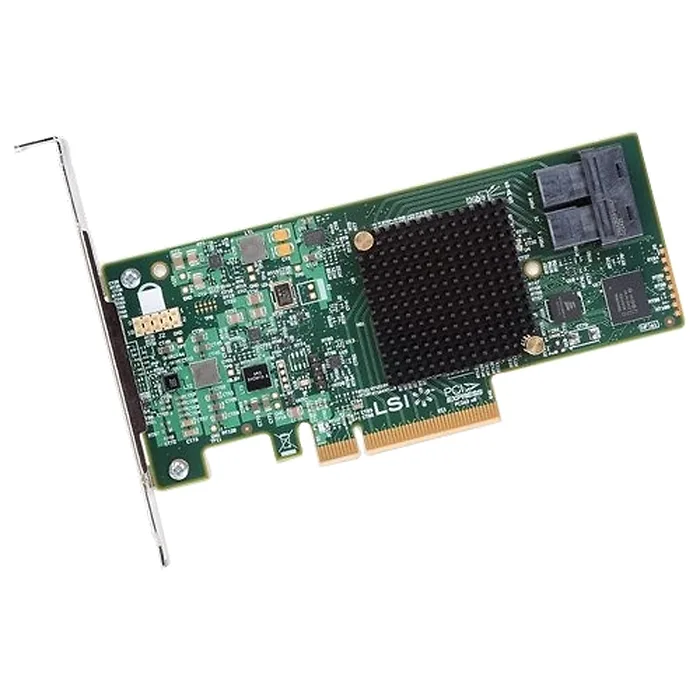

LSI LSI00344Brand NewProduct # LSI00344 LSI00344 Features: Packaged Quantity: 1 Host Interface: PCI Express 3.0 x8 Controller Type: 6Gb/s SAS RAID Supported: No Total Number of SAS Ports: 2 Number of SAS Ports (Internal): 2 SAS Connector Details: 2 SFF-8643 Form Factor: Plug-in Card Platform Supported: PC
Solution Provided
High performance for high-end servers connecting to large scale storage enclosures and for internal drive connectivity in 1U/2U servers and workstations. In the Box
9300-8i HBA documentation CD IO Controller
LSISAS3008 Fusion MPT 2.5 Port Count
8 port, internal Connectors
Mini SAS HD SFF8643 Two (x4) Storage Connectivity Data Transfer Rates
12Gb/s SAS 3.0 Compliant SAS Bandwidth
Half Duplex (x4 wide bus) 4800 MB/s Port Configurations
8 ea, x1 ports (individual drives) 2 ea, x4 wide port Host Bus
x8 lane, PCIe 3.0 PCI Data Burst Transfer Rates
Half Duplex x8, PCIe 3.0, 8000 MB/s Form Factor
Low Profile Brackets
Full Height and low profile vented Cable Support
Passive Copper LED Management
Reference SFF-8485 (SGPIO) compliant Operating Voltage
+12V +/-8% 3.3V +/-9% PCI Power (Nominal)
13W Device Support
1024 Non-RAID devices MTBF
>2,800,000 hours Regulatory Certifications
EMC: Class B-US (CFR 47, P15B) Canada (ICES-00) Japan (V-3/02.04) Europe (EN55022/EN55024) Australia/New Zealand (AS/NZS 3548) Korea (N-B 2-0001-404) Safety: EN60950 RoHS WEEE OS Support
Extensive support includes Microsoft Windows Vista/2008/Server 2003/2000/XP, Linux, Solaris (x86), Netware, FreeBSD, VMware and more.
