Product Information

• Part Number: M/GE-PSW-SX-01 (LC)
• Product Name: Lantronix Mini Gigabit Ethernet Media Converter (10/100/1000Base-T to 1000Base-SX LC Multi-mode)
• Brand: Lantronix (formerly Transition Networks)
• Category: Media Converter

Product Description

The Lantronix M/GE-PSW-SX-01 (LC) is a compact, stand-alone mini media converter designed to seamlessly bridge Gigabit Ethernet (10/100/1000Base-T) copper networks with 1000Base-SX multi-mode fiber optic cabling. Its small footprint makes it ideal for deployments where space is limited. Operating at Layer 2, it not only converts media types but also provides rate conversion, allowing older 10/100 Mbps copper devices to connect to 1000Base-SX fiber networks. Key features include Auto-Negotiation, Auto-MDI/MDIX, Active Link Pass Through, Automatic Link Restoration, and support for Jumbo Frames up to 10,240 bytes. This converter is a cost-effective solution for extending network distances and integrating diverse networking equipment.

Product Specifications

• Standards: IEEE 802.3
• Data Rate: 10/100/1000 Mbps
• Max Frame Size: Up to 10,240 bytes (Jumbo Frames)
• Copper Port: 1 x RJ-45 (10/100/1000Base-T)
• Fiber Port: 1 x LC (1000Base-SX, multi-mode)
• Fiber Wavelength: 850 nm
• Maximum Distance Supported (Multi-mode Fiber): ['220 m (722 ft) with 62.5/125 um fiber', '550 m (1804 ft) with 50/125 um fiber']
• Input Voltage: 4.5 VDC to 28 VDC (unit accepts)
• Power Supply (Included): 12 VDC 400mA Wall Mount AC Adapter
• Power Consumption: 3.15 Watts (typical)
• Dimensions (H x W x D): 0.85" x 1.8" x 3.3" (21.6 mm x 45.7 mm x 85.1 mm)
• Weight: 3.15 oz (127.5 g) approximately
• Operating Temperature: 0?C to +50?C (32?F to 122?F)
• Storage Temperature: -15?C to +65?C (5?F to 149?F)
• Humidity: 5% to 95%, non-condensing
• Certifications: UL Listed, cUL Listed, FCC Class A, CISPR22/EN55022 Class A, EN55024, CE Mark, RoHS, WEEE, REACH, TAA Compliant
• Features: ['Unit & Port LEDs', 'Auto-Negotiation', 'Fixed Full-Duplex on fiber', 'Auto-MDI/MDIX', 'Active Link Pass Through (ALPT)', 'Automatic Link Restoration', 'Space-saving design']
• Mounting Options: Standalone, Wall Mountable, DIN Rail Mountable, Rack-mountable (with optional kits)

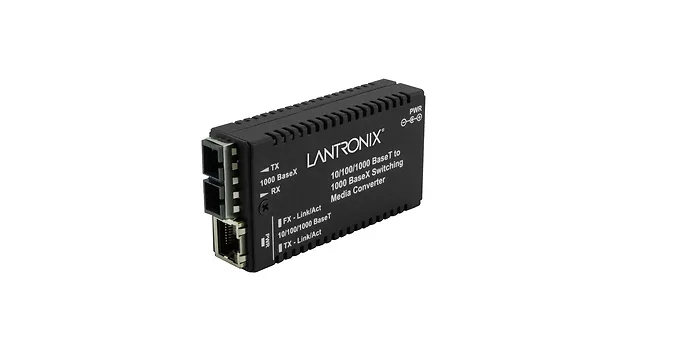

Product may differ from image shown

• Supports 10/100/1000 Mbps Ethernet transmission
• Converts copper Ethernet to LC multimode fiber
• Compact design for easy deployment in various environments
• Plug-and-play functionality for quick setup
• Power-saving features for reduced energy consumption
