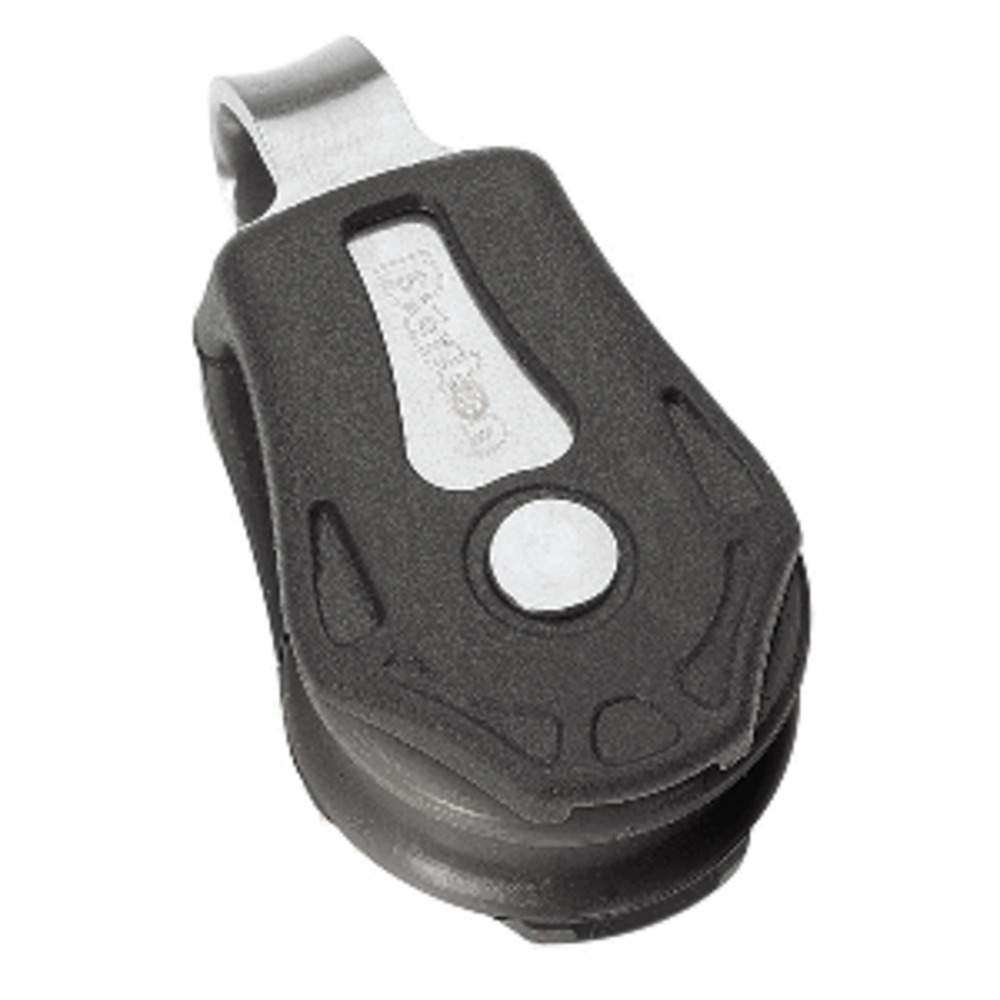

Barton 30mm Plain Bearing Pulley Block

This Size 1 Plain Bearing Pulley Block features a 30mm (1 3/16") sheave and is designed with an internal steel frame for enhanced strength and durability. Its lightweight and modern design make it suitable for various applications on different types of crafts, with an option for ball bearing sheave for smoother operation.

Compatible with ropes up to 8mm (5/16") in diameter.

• Weight: 51 g
• Dimensions: 85 × 32 × 25 mm
• Block Type: Swivel + Becket
• No. of Sheaves: Single
• Bearing Type: Plain
• Sheave Size: 30mm x 12mm (1 3/16" x 15/32")
• Max rope diameter: 8mm (5/16")
• SWL: 355kg (782lbs)
• Break load: 710kg (1565lbs)
• Max rolling load (ball bearing blocks): 245kg (540lbs)
