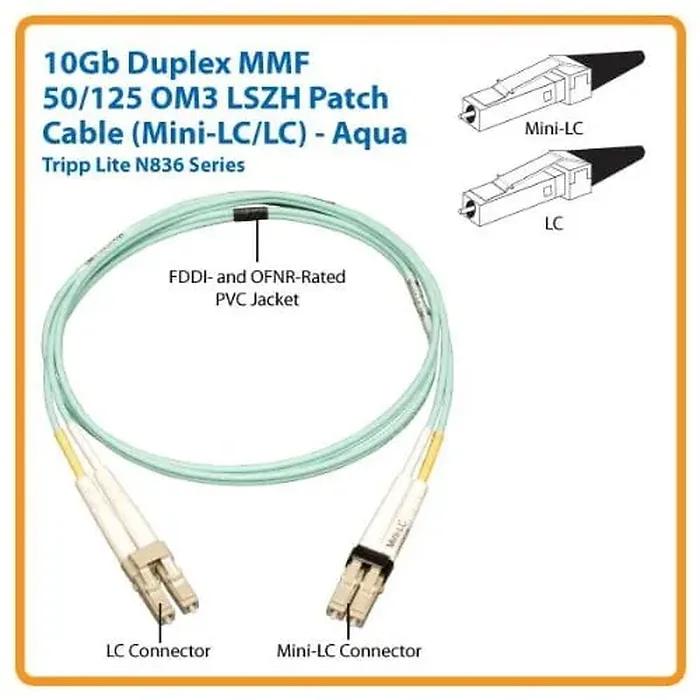

2M (6-ft.) 10Gb Duplex MMF 50/125 OM3 LSZH Patch Cable ( Mini-LC / LC) - Aqua

• UPC Code: 037332165718
• Technology: Multimode
• Optical Mode: OM3
• Cable Jacket Color: Aqua
• Connector Color: White; Beige
• Cable Jacket Material: LSZH
• Cable Jacket Rating: OFNR
• Clad Diameter (microns): 125
• Core Diameter (microns): 50
• Number of Fibers: 2
• Cable Length (ft.): 6.6
• Cable Length (in.): 78.7
• Minimum Bend Radius: 20 mm (Dynamic); 10 mm (Static)
• Shipping Dimensions (hwd / in.): 9.00 x 7.00 x 0.50
• Shipping Weight (lbs.): 0.05
• Fiber Cable Length: 1M (6.6 ft)
• Operating Temperature Range: -4? to 140?F (-20? to 60?C)
• Storage Temperature Range: -4? to 140?F (-20? to 60?C)
• Operating Humidity Range: 5% to 85% RH, Non-Condensing
• Storage Humidity Range: 35% to 65% RH, Non-Condensing
• Network Compatibility: 1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps
• Attenuation @ 850NM: 3.0 dB/km
• Insertion Loss: ≤ 0.20 dB
• Side A - Connector 1: LC DUPLEX (MALE)
• Side B - Connector 1: MINI LC DUPLEX (MALE)
• Endface Polish: PC
• Product Compliance: RoHS; REACH
• Product Warranty Period (Worldwide): Lifetime limited warranty
