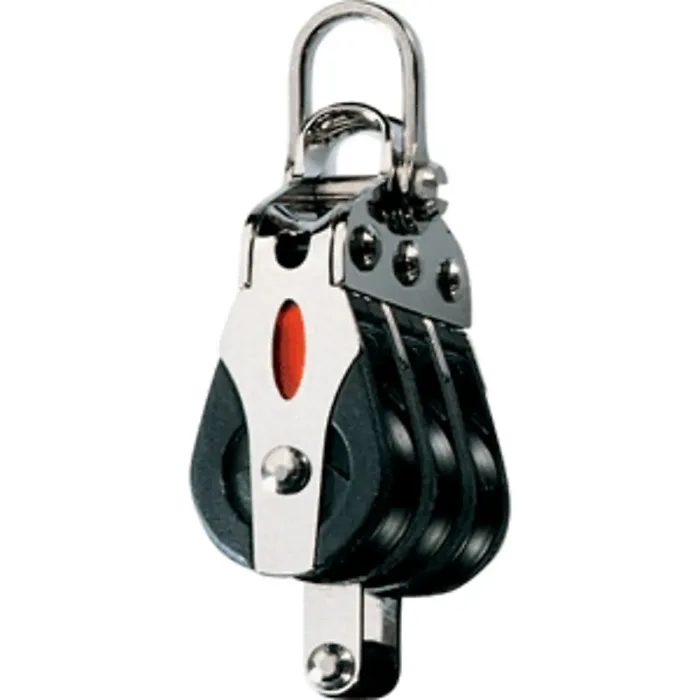

Ronstan Series 20 Ball Bearing Block - Triple - Becket - 2-Axis Shackle Head

Name: RF20312 Ronstan Series 20 Ball Bearing Block - Triple - Becket - 2-Axis Shackle Head
Brand: Ronstan
SKU: D0NPMNQELR
Price: 48.44 USD
Availability: InStock

MFG No: RF20312
SKU No: D0NPMNQELR
UPC: 9316800255580
MFG. Name: Ronstan
Available: 4
Condition: New

$49.97

Series 20 Ball Bearing Block - Triple - Becket - 2-Axis Shackle Head

Features:

Low friction
High static and dynamic load capacity
Lightweight
Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction
Two-Way head can be fixed at 0° or 90°

Applications:

Dinghy control lines
Dinghy vangs
Cunninghams
Traveller controls

Materials:

Stainless steel ball bearings
UV Stabilized Acetal sheave
Grade 316 stainless steel load strap and head fitting
Impact and UV resistant, fiber reinforced Nylon cheeks

Specifications:
Sheave Ø:20mm(3/4")
Max. Rope Ø:6mm(1/4")
PinØ: 4mm(5/32")
M.W.L.:400kg(880lbs)
B. L.:850kg(1,870lbs)
Weight:64g(2.3oz)

Series 20 Ball Bearing Block - Triple - Becket - 2-Axis Shackle Head

Features:

Low friction
High static and dynamic load capacity
Lightweight
Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction
Two-Way head can be fixed at 0° or 90°

Applications:

Dinghy control lines
Dinghy vangs
Cunninghams
Traveller controls

Materials:

Stainless steel ball bearings
UV Stabilized Acetal sheave
Grade 316 stainless steel load strap and head fitting
Impact and UV resistant, fiber reinforced Nylon cheeks

Specifications:
Sheave Ø:20mm(3/4)
Max. Rope Ø:6mm(1/4)
PinØ: 4mm(5/32)
M.W.L.:400kg(880lbs)
B. L.:850kg(1,870lbs)
Weight:64g(2.3oz)
