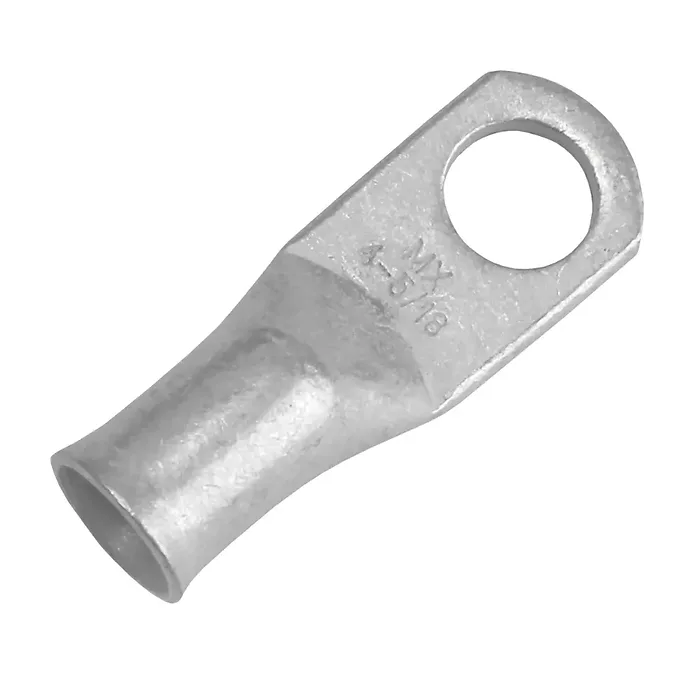

Pacer 4 AWG Tinned Lug - 5/16" Stud Size - 10 Count

Establishing a reliable connection is crucial for any electrical system. Pacer's closed-end lugs offer not only strength but also durability over time. These lug connectors are tin-plated with no exposed seams, making them particularly suitable for marine applications. Their design helps create waterproof connections when paired with epoxy heat shrink, ensuring that all conductor parts remain shielded from environmental factors.

To install, strip your wire or cable to the recommended length, then slide the lug over the exposed wire, ensuring the insulation meets the lug's edge. Afterward, crimp the lug with the appropriate tool and, for enhanced durability, consider adding epoxy-lined heat shrink. Pacer's closed-end lugs are available for wire sizes ranging from 8 AWG to 4/0 AWG and come in various stud sizes, including #10, 1/4", 5/16", 3/8", and 1/2". If you're unsure about selecting the right lug, feel free to reach out to a Pacer specialist for assistance.

• Tin plated for superior corrosion resistance
• No exposed seams for enhanced durability
• Rated for 600V applications
• Constructed from seamless tubes of 99.9% copper for optimal conductivity
• Designed specifically for stranded copper wires
• Larger contact area for improved electrical performance
• Cable size and stud hole clearly marked on the pad
• Can be crimped or soldered for versatile installation
• Controlled flare for easy cable insertion
• Tight transition from barrel to pad for extended barrel length
