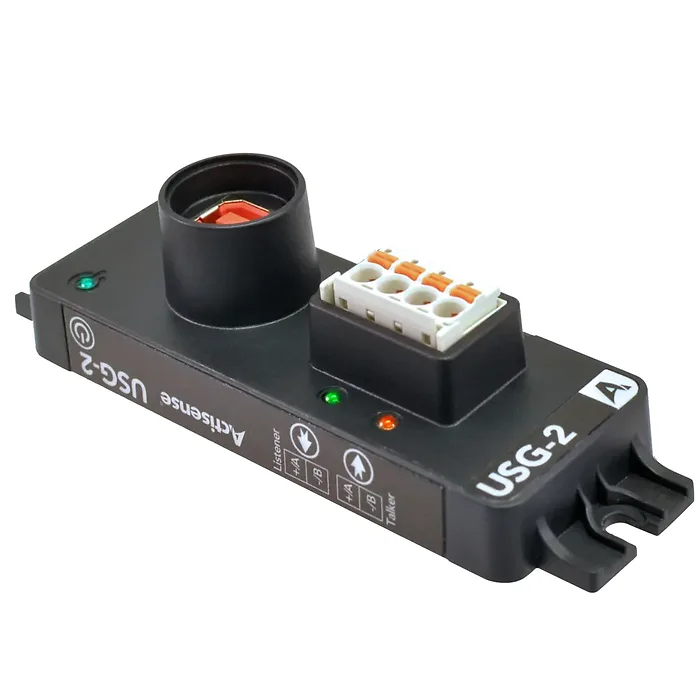

USG-2 USB to Serial Gateway for NMEA0183

The Actisense USG-2 is a high-performance USB to serial gateway designed for seamless connectivity with NMEA 0183, RS422, and RS232 data buses. This device ensures a reliable and secure connection by utilizing ISO-Drive™ technology and OPTO-isolation to eliminate ground loop issues, safeguarding both the device and any connected equipment.

Featuring a robust, shielded USB cable and a custom-designed USB socket, the USG-2 offers excellent water protection while simplifying the connection to your PC. The device also includes a pluggable screwless connector for easy installation, with options for bulkhead or DIN rail mounting. Multiple built-in diagnostic LEDs make it straightforward to monitor device status, providing visual feedback for power and data transmission.

• NMEA 0183 and RS422 compatibility
• RS232 compatible
• ISO-Drive™ technology for electrical isolation
• Isolated input (2500V) and output (1500V)
• Encapsulated electronics for enhanced durability
• High retention USB socket for secure connection
• Diagnostic LEDs for easy troubleshooting
• Supports baud rates from 300 to 230400 bps
• Bulkhead mount with optional DIN rail mount kit
• Pluggable screwless connector with locking latch and strain relief
