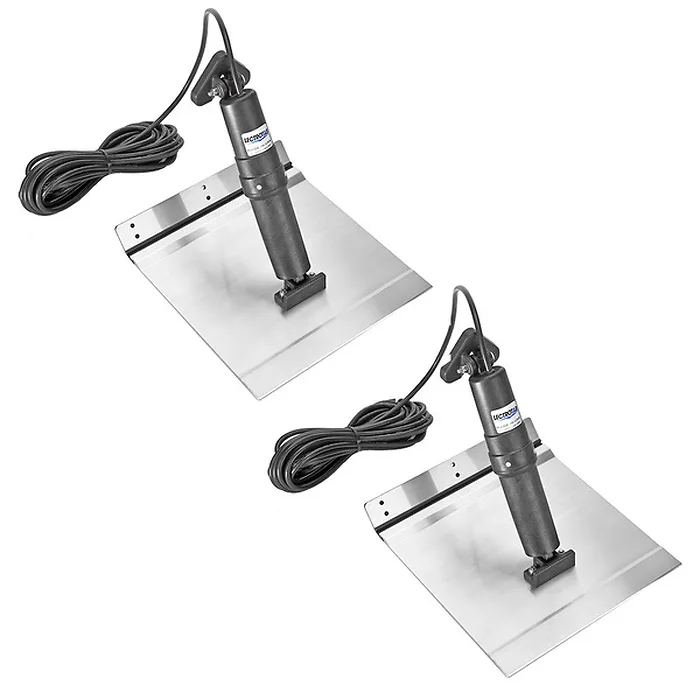

Lectrotab XKA 12" x 9" Aluminum Trim Tabs with Actuators

The Lectrotab XKA Aluminum Trim Tabs are expertly crafted for aluminum hulled boats, offering an economic solution suitable for a variety of vessels. Each trim tab features a robust, corrosion-resistant epoxy coating and a unique "no-break" polypropylene hinge that withstands over 300,000 cycles of bending without failure.

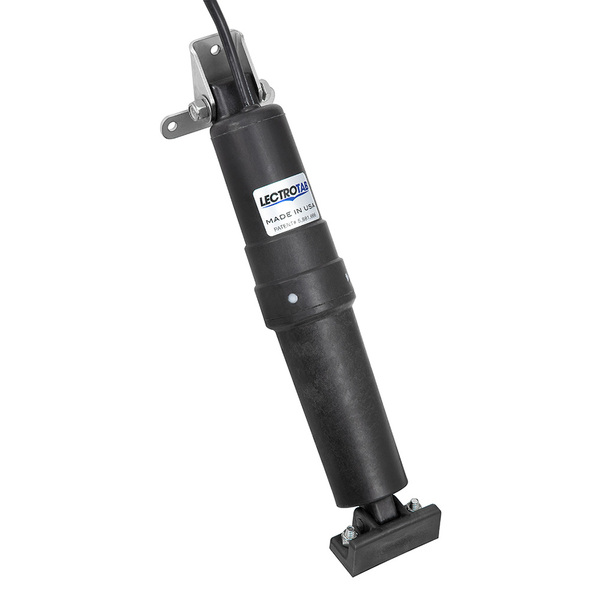

Designed for optimal performance, the included precision-engineered actuators provide quiet operation and a non-hydraulic, maintenance-free experience. This self-contained system simplifies installation, as no components need to be placed inside the boat, eliminating the risk of leaks commonly associated with hydraulic systems.

Each actuator is equipped with a standard or low profile mounting bracket, allowing for versatile installation options. Please note that a control switch is not included with the package.

Technical Specifications:

• Trim Tab Size: 12" x 9" (30 x 23 cm)
• Recommended Boat Length: 18' to 29' (5.5 to 8.5 M)
• Material: Marine grade 6005-T5 Aluminum Alloy
• Actuator Voltage: 12 V
• Stroke Length: 2.25" (57 mm)
• Cable Length: 23' (7 M)
• Vertical Height: 11.875" (302 mm)

Included in the Box:

• Two Aluminum Alloy Trim Tabs
• Two Actuators with 23' (7 M) Cables
• Instruction Manual

• Corrosion-resistant epoxy coating for long-lasting use
• Equivalent strength to 10 gauge stainless steel
• Durable "no-break" hinge tested over 300,000 cycles
• Upper ram seal location designed to prevent damage
• Internal pressure equalization ensures optimal performance
• Prevents unwanted tab movement during travel
• Quiet operation
• Actuators can push up to 1000 lbs of force
• Non-metallic structure that resists corrosion and UV deterioration
