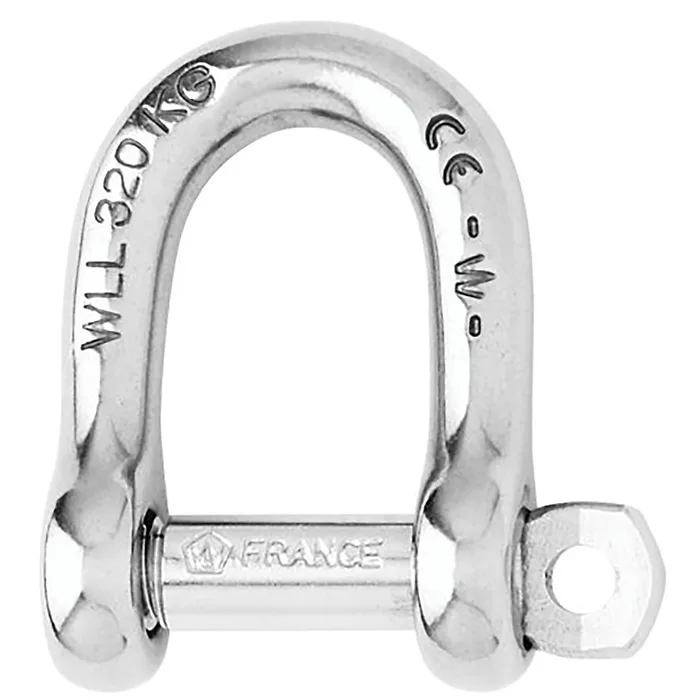

Wichard Self-Locking D Shackle - 12mm Diameter - 15/32"

MFG No: 01206
SKU No: UZSNSDDS8Y
MFG. Name: Wichard Marine
Available: 2
Condition: New

$75.28


Wichard 12mm Self-Locking D Shackle - Heavy Duty

This high-strength self-locking D shackle is expertly forged from grade 316L stainless steel, ensuring maximum durability and reliability. Its innovative design allows the pin to lock securely into place, preventing any loosening from vibrations, making it ideal for both standard and industrial lifting applications.

Applications:

  • General rigging applications
  • Attachment points for blocks and assembly components

Specifications:

  • Materials: 316 stainless steel grade
  • Working Load: 4580 lb (2080 kg)
  • Working Load Limit (WLL): 2640 lb (1200 kg)
  • Breaking Load: 13220 lb (6000 kg)
  • Weight: 0.425 lb (193 g)

Dimensions:

  • A: 1-21/32" (42 mm)
  • B: 1-1/16" (27 mm)
  • C: 15/32" (12 mm)
  • D: 15/16" (24 mm)
  • E: 7/16" (11 mm)
  • F: 2-7/8" (73 mm)
  • G: 2-7/16" (62 mm)

Safety Information:

This shackle has a safety factor of 5 times the breaking load with the Working Load Limit (WLL) calculated as WLL = Breaking Load / 5. It is marked with CE certification for industrial safety.

*Sold individually.


Features:

  • Self-locking mechanism for enhanced safety
  • Forged from marine-grade 316L stainless steel
  • Prevents loosening due to vibrations
  • High working and breaking load capacity
  • CE marked for compliance with industry standards
