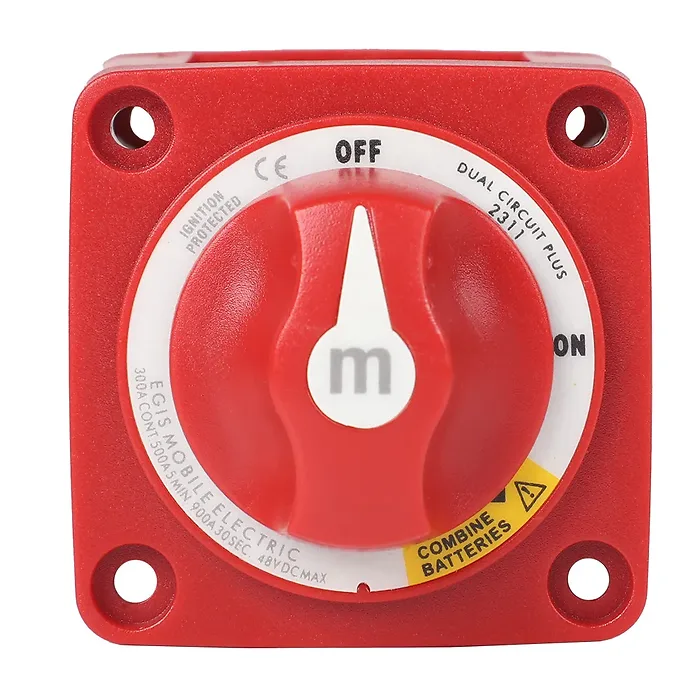

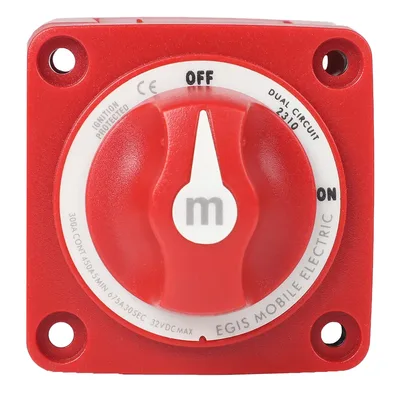

Egis 300A Dual Circuit Battery Switch

This robust battery switch features dual circuits and a combine function, making it ideal for marine and automotive applications. It is designed to provide reliable circuit protection while ensuring safety in closed compartments that may contain explosive gases.

The switch is sealed against dust and water intrusion, safeguarding your electrical system for the long haul. It is constructed with stainless steel hardware and high-temperature materials suitable for harsh environments.

Key Specifications:

• Maximum Voltage (Single Circuit): 48 Vdc
• Maximum Voltage (Selector / Dual Circuit): 32 Vdc
• Stud Size And Thread: 3/8”-16
• Terminal Stud Torque: 120 in-lbs (13.6 N-m)
• Ring Terminal Size Acceptance: 3/8” (M10)
• Mounting Holes: #10 Screw
• Live Switching Rating: 25 Amps
• Ignition Protection Rating: SAE J1171 / ISO 8846
• Bulkhead / Panel - Mounting Hole Size: 2-5/8" / 2-5/16"
• Cable Size to Meet Rating: 4/0 AWG

• Sealed against dust and water intrusion
• Ignition protected for safe use in closed compartments
• Serrated flange lock nuts reduce loosening
• Versatile mounting options for various installations
• Durable construction for harsh environments
