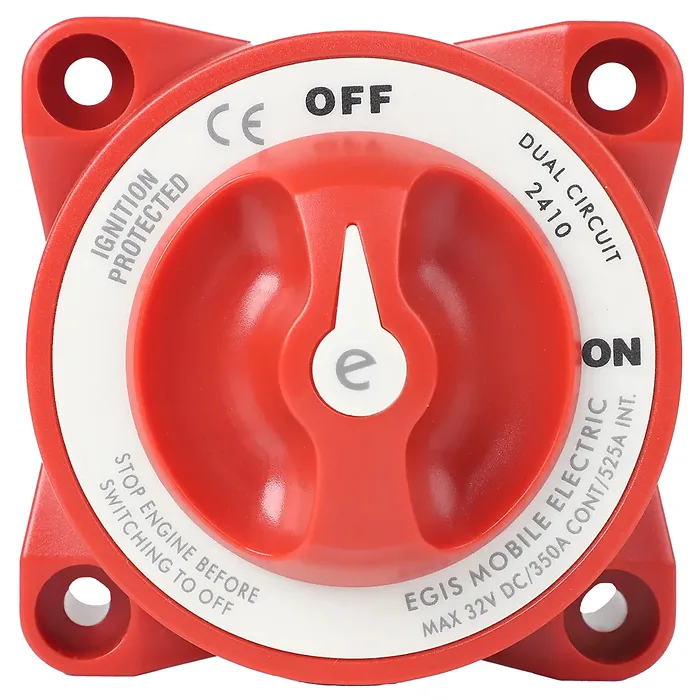

Egis E-Series 350A Dual Battery Switch

This dual circuit battery switch is designed for reliable and safe operation in harsh environments. Its sealed design ensures protection against dust and water intrusion, making it perfect for marine settings.

The ignition protection feature of this switch allows for safe installation in closed compartments, minimizing the risk of ignition from explosive gases. The serrated flange lock nuts improve the resistance of cable terminals against loosening due to vibrations, ensuring a stable connection.

With flexible mounting options, this switch can be adapted to a variety of installation types, catering to diverse user needs. Made with stainless steel hardware and high-temperature materials, it is built to withstand tough conditions.

Specifications:

• Maximum Voltage (Single Circuit): 48 Vdc
• Maximum Voltage (Selector / Dual Circuit): 32 Vdc
• Stud Size And Thread: 3/8”-16
• Terminal Stud Torque: 140 in-lbs (15.8 N-m)
• Ring Terminal Size Acceptance: 3/8” (M10)
• Mounting Holes: #1/4" (M6) Screw
• Live Switching Rating: 25 Amps
• Ignition Protection Rating: SAE J1171 / ISO 8846
• Bulkhead / Panel - Mounting Hole Size: 3-5/8" Diameter
• Cable Size to Meet Rating: 4/0 AWG

• Sealed against dust and water intrusion
• Ignition protected for safe use in closed compartments
• Serrated flange nuts for high-vibration resistance
• Flexible mounting options for various configurations
• Durable design with stainless steel hardware
