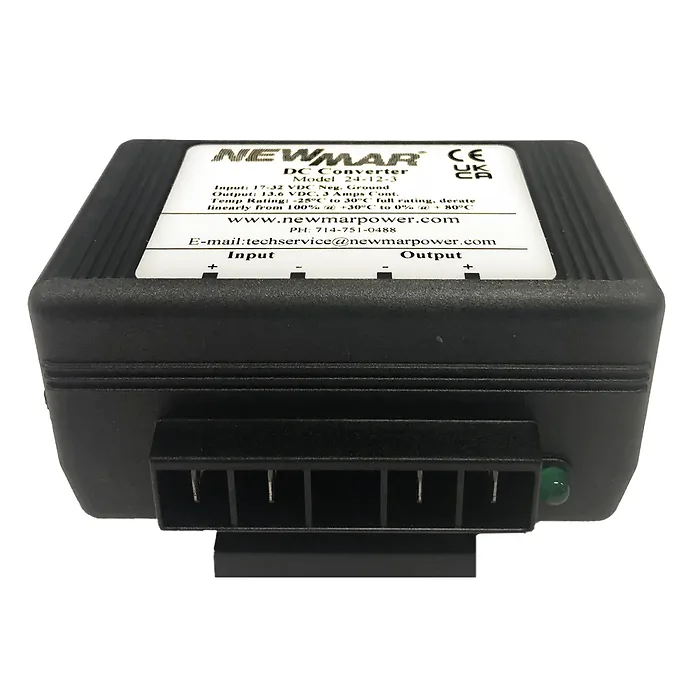

Newmar 24-12-3 DC Converter - 12V Power Supply

This DC converter efficiently converts a wide input voltage range of 17-32 VDC to a stable 12 VDC negative ground output, making it ideal for powering communication and navigation equipment on negative ground systems.

Key Features:

• Excellent voltage regulation maintaining output within 1% under varying line and load conditions.
• Large heat sink fins effectively dissipate heat, ensuring cool operation and longevity of components.
• Durable polyurethane conformal coating on PC boards and corrosion-resistant anodized aluminum casing for environment resilience.

Safety and Protection:

• Incorporates numerous protection features including current limiting, automatic thermal shutdown, short circuit proof, reverse polarity, and overvoltage protection.
• Carries the CE mark for compliance with safety standards.

Specifications:

• Input Voltage: 17-32 VDC
• Output Voltage: 13.6 VDC (internally adjustable 12.6 - 14.5 VDC)
• Output Amps (Intermittent): 3A
• Output Amps (Continuous): 3A
• Dimensions: 3.5 x 3.5 x 1.75 inches
• Weight: 1 lb.
• Ripple: 150 mV P-P maximum
• Efficiency: 85% typical

Operating Conditions:

• Temperature Range: 0-50 degrees C with derating above 40 degrees C.
• Can provide full output from -25 degrees to +30 degrees C, with gradual derating to 45% at +50 degrees C.

Mechanical Features:

• Constructed with a powder-coated aluminum heat sink case and heavy-duty mounting flange.
• Includes a front panel terminal block for easy connections.
• Conformal coated PC board for enhanced durability.

Note: This product cannot be returned to the original point of purchase. For any issues or concerns, please contact the manufacturer directly.

• Converts 17-32 VDC input to 12 VDC output
• 1% output voltage regulation across loads
• Large heat sink for cool operation
• Corrosion-resistant aluminum casing
• Multiple safety features for overload protection
• CE mark compliant
