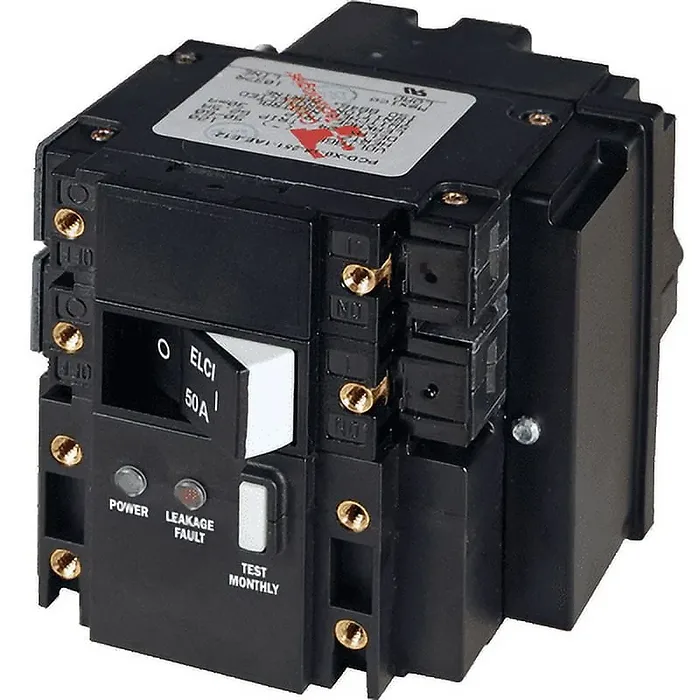

Blue Sea C-Series ELCI 50A 120v AC Double Pole Main Circuit Breaker

Name: 3103-BSS Blue Sea C-Series ELCI 50A 120v AC Double Pole Main Circuit Breaker
Brand: Blue Sea Systems
SKU: E6YY2Y9Z5P
Price: 487.28 USD
Availability: InStock

MFG No: 3103-BSS
SKU No: E6YY2Y9Z5P
UPC: 632085031039
MFG. Name: Blue Sea Systems
Available: 4
Condition: New

$435.25

Blue Sea C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A

Model: 3103-BSS

Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
Meets UL 1500 external ignition protection requirements
Trips on short circuit, overload, or leakage to ground
Front panel mount-installed in a power distribution panel

Specifications
Amperage

50A
Actuator Style	Flat Rocker
Poles	2
Ignition Protected	Yes
Maximum Voltage	120V AC per pole
Circuit Breaker Type	Magnetic Hydraulic - trip free
Interrupt Capacity	5000a
Minimum Operating Temperature	-35 deg C
Maximum Operating Temperature	66 deg C
Leakage Trip Amps	30mA
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Switching Cycles	10000
Weight	0.85lb (0.39 kg)

Amperage: 50A
Actuator Style: Flat Rocker
Poles: 2
Ignition Protected: Yes
Max Voltage: 120VAC per pole
Circuit Breaker Type: Magnetic Hydraulic - trip free
Interrupt Capacity: 5000A
Minimum Operating Temperature: -35 degrees C
Max Operating Temperature: 66 degrees C
Leakage Trip Amps: 30mA
