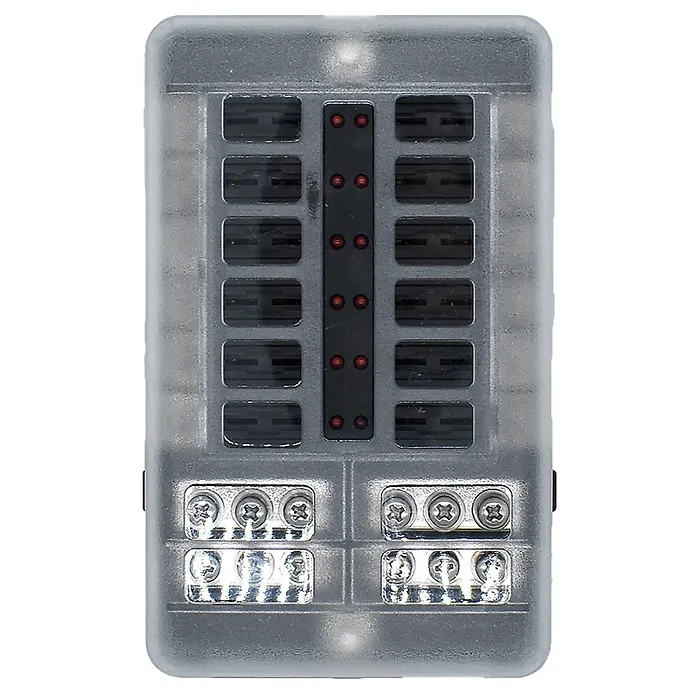

12-Position Marine LED Fuse Block

This innovative 12-position fuse block is designed to enhance circuit protection and ease of troubleshooting in 48V DC systems. Each circuit can support up to 30A, and the built-in LED indicator will alert you instantly when a fuse blows, allowing for quick identification and resolution of issues.

Engineered for neat and organized wiring in both marine and mobile applications, this fuse block accommodates up to 100A of input current via M5 threaded studs, with M4 output studs rated for a maximum of 25A per circuit. It is compatible with both 88 Series and BW 38 Series breakers.

The housing material is a combination of stainless steel, nickel-plated copper, and polycarbonate, which guarantees exceptional durability and resistance to corrosion. Installation is straightforward with 0.1695” holes, spaced 4.725” H x 2.725” W for the 12-position block.

This LED fuse block is an excellent choice whether you are making an upgrade or constructing a new system, providing a clean, professional look along with efficient maintenance capabilities.

• Max Voltage: 48V DC
• Input Current Capacity: 100A
• Compatible Breakers: 88 Series / BW 38 Series
• Input Terminal Rating: M5 Threaded Studs (100A max)
• Output Terminal Rating: M4 Threaded Studs (25A max)
• Durable Materials: Stainless Steel, Nickel-plated Copper, Polycarbonate
