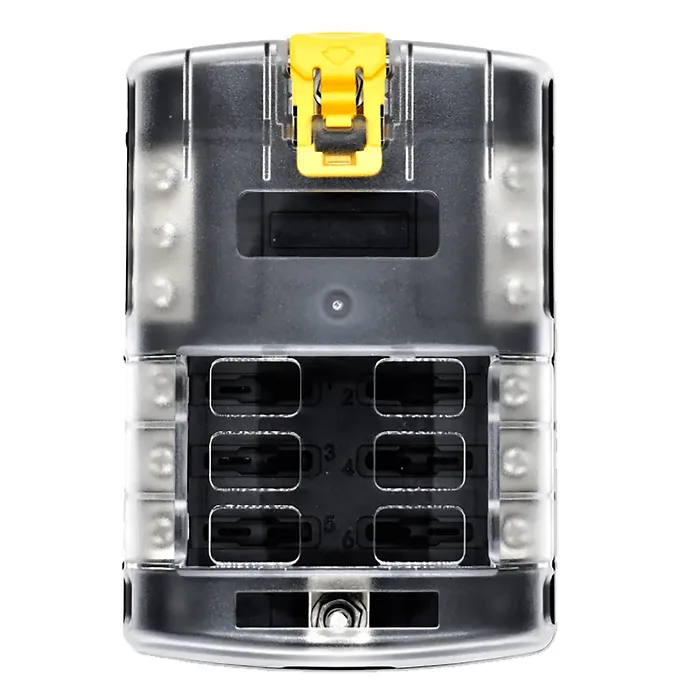

Marine 6 Position ATC Fuse Block

This robust 6-position fuse block is designed for marine applications, providing a reliable solution for organizing low-voltage electrical circuits in boats and RVs. It centralizes and protects up to 6 independent circuits, ensuring safe circuit management in demanding environments.

Compatible with 48V DC systems, this fuse block features M5 threaded studs for main input and M4 for outputs, accommodating up to 25A per circuit. It is designed for use with 88 Series breakers.

Constructed with durable stainless steel hardware and nickel-plated copper, it offers longevity and resilience. The polycarbonate body enhances its strength, making it suitable for various applications.

Specifications:

• Max Voltage: 48V DC
• Input Current: 100A
• Breaker Compatibility: 88 Series
• Main Input: M5 Threaded Studs (100A max)
• Outputs: M4 Threaded Studs (25A max)
• Material: Stainless Steel, Nickel-plated Copper, Polycarbonate

Installation:

• M5 main connection studs
• Mounting Holes: 0.1750”
• Distance Between Holes: 3.709” H / 2.331” W

• Organizes up to 6 circuits
• Rated for 48V DC systems
• Streamlined installation with M5 & M4 studs
• Durable materials for marine environments
• Compatible with 88 Series breakers
• Clear layout for easy maintenance
