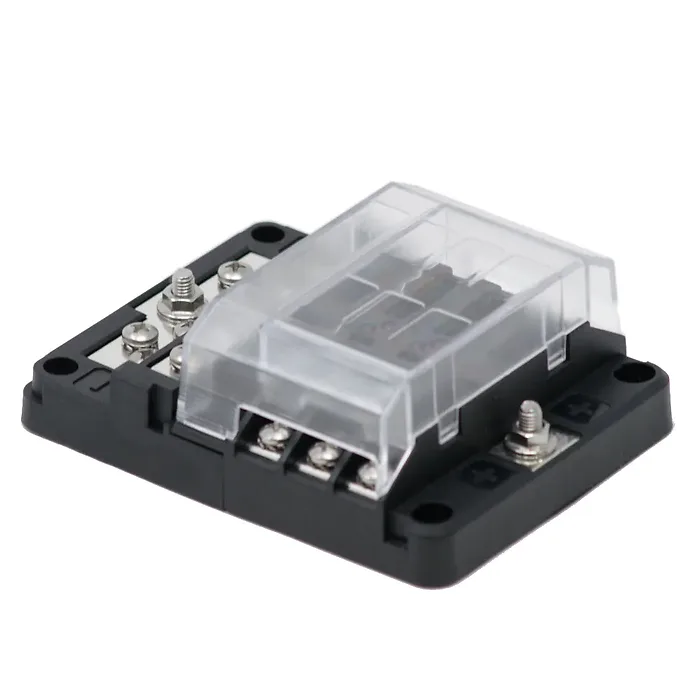

6 Position Fuse Block with Ground & LED Indicators

This innovative 6-position fuse block features a modular design that allows for seven unique configurations, simplifying stock management for various build requirements. The inclusion of a ground block and LED indicators enhances the functionality of this fuse block.

Applications:

• Blown fuse LEDs facilitate quicker fault corrections and improve remote diagnosis for customer support.
• Designed for harsh environments, featuring stainless steel self-locking hardware and optional weather-proof labels available in standard or customized variants.

Specifications:

• Maximum Current (Entire Block): 100 Amps
• Maximum Current (Per Circuit): 30 Amps
• Max Output Wire Size: #10 AWG
• Voltage Range: 0-36 VDC
• Number of Fuse Positions: 6
• Compatible Fuse Types: ATO / ATC / ATF

Key Features:

• Constructed with high-temperature materials and stainless steel self-locking hardware for versatile mounting options across various vehicle types.
• Provides robust branch circuit protection with compatibility for ATO style fuses ranging from 1 to 40 Amps.
• Adheres to SAE standards for circuit protection against thermal or short-circuit events.
• Includes two spare fuse locations for testing or temporary resistors to minimize siren volume during evaluations.
• All attachment components are made from 100% non-ferrous materials, ensuring corrosion resistance.
• Blown fuse LED indicators on each output circuit simplify troubleshooting and maintenance by clearly identifying faulty circuits.
• Protects terminal studs and cable edges from accidental shorts with cover/label recesses.
• Comes with a 12-position ground return block featuring multi-level low amp terminal screws for improved installation options.
• The ground block can optionally be separated from the fuse block, providing flexible installation possibilities for complex setups.
