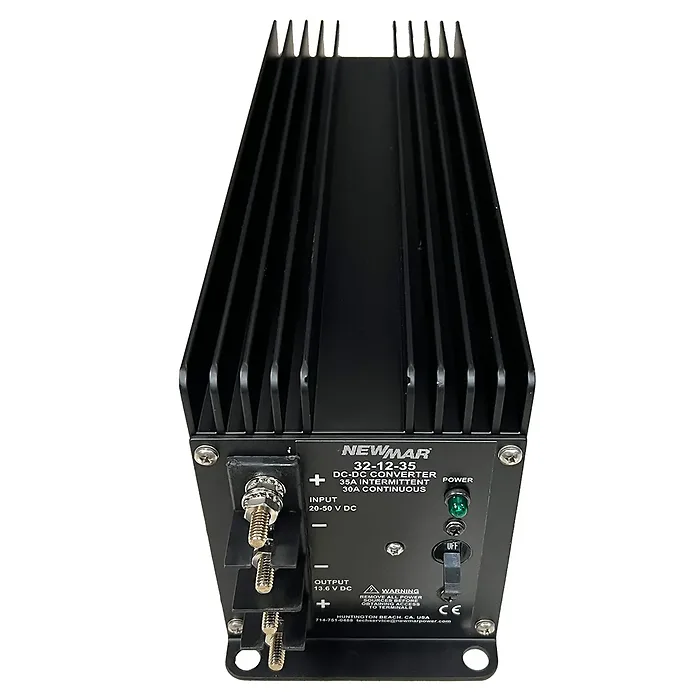

Newmar 32-12-35 12V DC Converter

The Newmar 32-12-35 DC Converter is designed to convert a wide input voltage range of 20-50 VDC into a stable 12 VDC output, ideal for powering communication and navigation equipment in negative ground systems. This unit is robust, ensuring reliability in hostile environments while providing optimal performance.

Key Features:

• Excellent voltage regulation maintained within 1% under various line and load conditions.
• Enhanced cooling through large heat sink fins and effective heat dissipation for a longer lifespan.
• Durable construction with a polyurethane conformal coating on PC boards and corrosion-resistant aluminum casing.

Protection and Specifications:

• Includes numerous protection circuits: current limiting, automatic thermal shutdown, short circuit proof, reverse polarity, and overvoltage protection.
• Specifications include:
• Input Voltage: 20-50V
• Output Voltage: 13.6V
• Continuous Output Amps: 30A
• Intermittent Output Amps: 35A
• Case Size: 6.0 x 4.7 x 16.0 inches
• Weight: 12 lbs.
• Efficiency: 85%, typical.

• Input Voltage Range: 20-50 VDC
• Output Voltage: 12 VDC with adjustable settings
• Peak Output Current: 35 Amps (intermittent)
• Continuous Output Current: 30 Amps
• Robust thermal management with large heat sinks
• Enhanced durability with conformal coating and anodized aluminum case
• Protection against current overload, thermal shutdown, and overvoltage
• CE certified for compliance with safety standards
