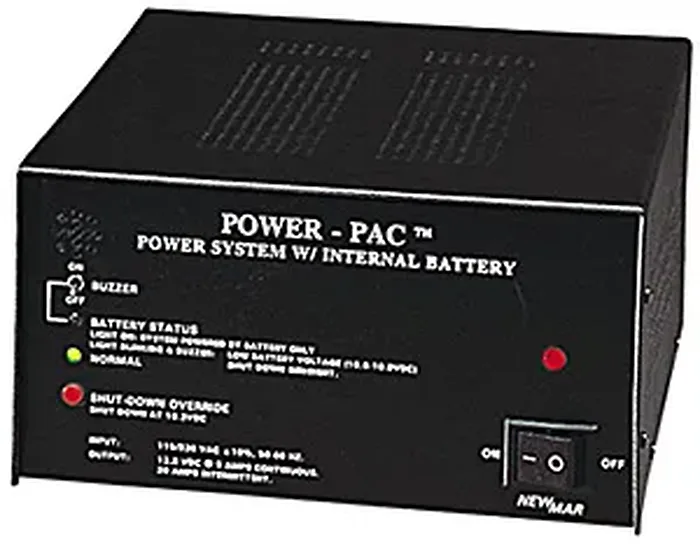

The Newmar Power Pac 14AH Power Supply is designed for critical applications such as VHF shore stations, ensuring continuous operation even during power outages. This 12-volt supply includes built-in backup batteries that are charged during normal operation, automatically supplying power to radios when AC power fails.

• Provides highly regulated, low ripple output for noise-free radio operation.
• Automatic battery activation when AC power is lost.
• Features a low battery alarm and disconnect, with an override switch for emergency power.

General Specifications:

• Input: 115/230 VAC, 50-60 Hz.
• Output: 13.6 VDC @ 5A continuous, 10A intermittent.
• Regulation: 1% line and load.
• Ripple: 1% P-P.
• Operating Temperature: 0-40°C.

Models:
Power-Pac 7 A/H (with 7 amp/hour battery), 18 lbs.
Power-Pac 14 A/H (with 14 amp/hour battery), 24 lbs.
Dimensions (both models): 5.3 inches H x 9.0 inches W x 10.5 inches D.

• Highly regulated, low ripple output.
• Automatic battery activation during AC failures.
• Low battery alarm with emergency power override.
