Trident Marine 5/16" A1-15 Reel Low Permeation Fuel Line Hose - Black - Sold by the Foot

Trident Marine Low Permeation A1-15 Fuel Line Hose - 5/16" - Sold by the Foot

This A1-15 rated fuel hose is designed for marine applications, providing optimal performance with gasoline (including ethanol blends) and diesel fuels. Its unique barrier-lined construction prevents fuel from coming into direct contact with the hose material, ensuring durability and safety.

Key Features:

• Sold by the foot to suit your specific length needs.
• Exceptional resistance to fuel permeation, aging, fire, heat, cold, and ozone.
• Flexible design allows for easy installation and movement.
• NMMA Type Accepted and CE certified for quality assurance.

Applications:

• Ideal for marine fuel distribution, return, venting, and transfer.
• Compatible with various marine fuels, including gasoline, alcohol blends, diesel, and bio-diesel.

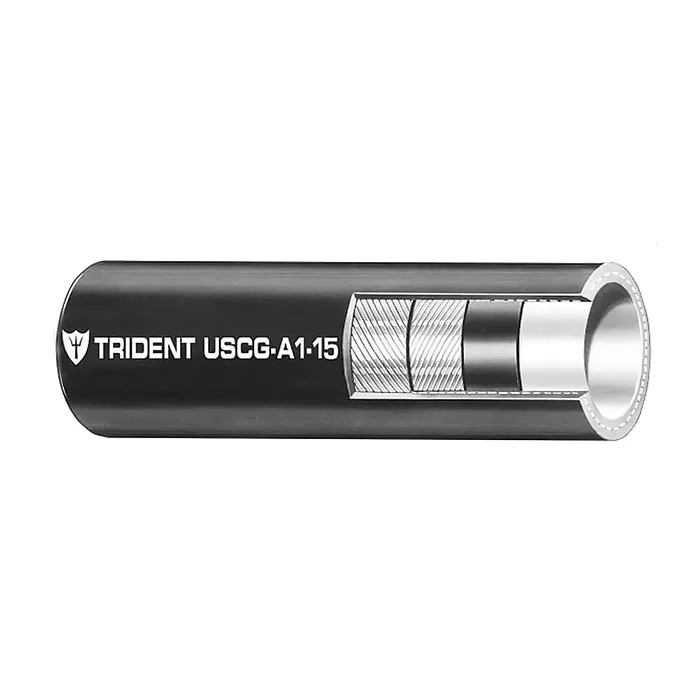

Construction Details:

• Inner Tube: Nylon Internal Barrier, NBR.
• Outer Cover: NBR/PVC Blend.
• Reinforcement: Polyester with 2 spiral layers.
• Temperature Range: -20°F to 212°F (-28°C to 100°C).
• Available in a 250 ft. reel, sold by the foot.

Specifications:

• Inner Diameter: 5/16" (7.92 mm).
• Outer Diameter: 0.611" (15.5 mm).
• Burst Pressure: 400 psi (2.76 mpa).
• Working Pressure: 100 psi (0.69 mpa).
• Bend Radius: 1.75" (44.5 mm).
• Weight: 13.3 lb/100 ft. (0.198 kg/m).
• Permeation Rate: <10 g/m²/24 hrs (complying with CE10).

Note: This product exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and is EPA Certified for low permeation Type A1-10.

• Sold by the foot for custom lengths.
• High resistance to fuel permeation and environmental damage.
• Flexible and easy to install.
• Meets rigorous certification standards.
