Trident Marine 5/16" Low Permeation Type A1-15 Fuel Line Hose - Black - Sold by the Foot

MFG No: 365-0566-FT
SKU No: KMW7G0HKT8
MFG. Name: Trident Marine
Available: 48
Condition: New

$15.10

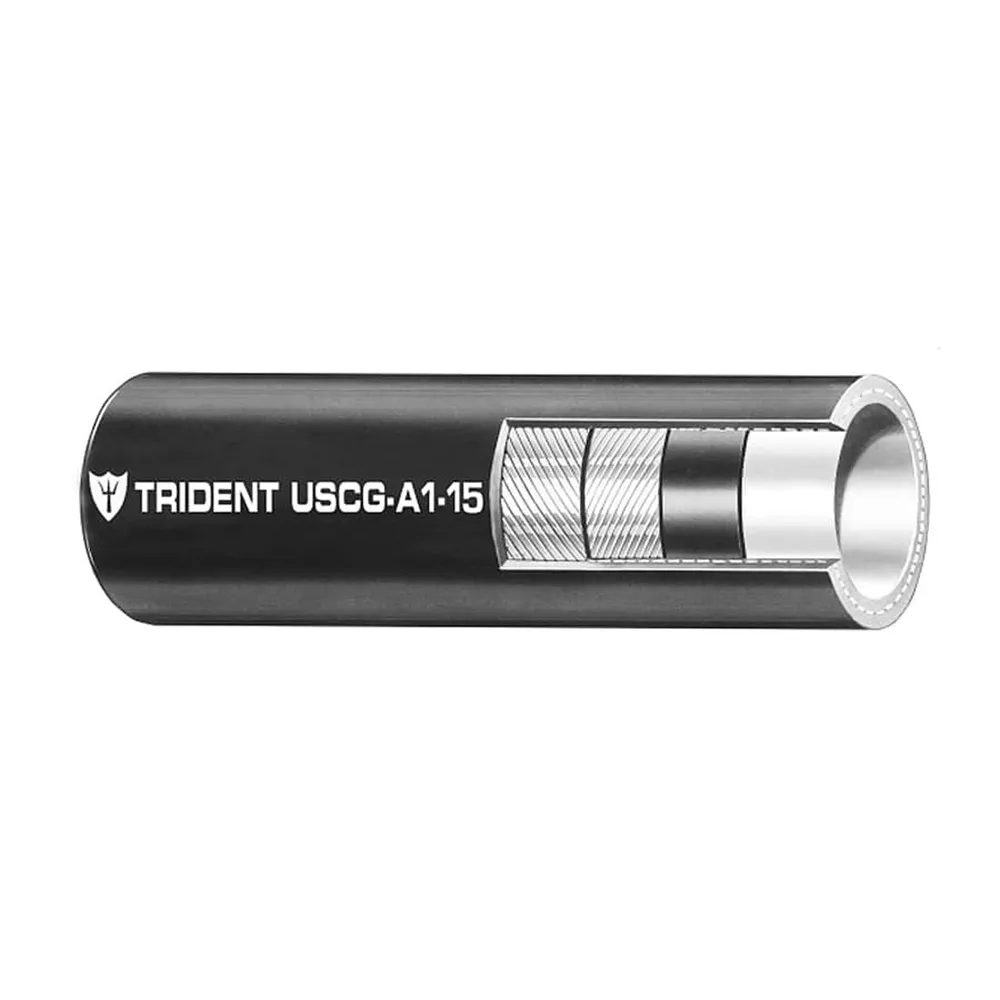

5/16" Low Permeation A1-15 Marine Fuel Hose - Black

The Trident Barrier Lined A1-15 Fuel Hose is suitable for both gasoline (including ethanol blends up to 85%) and diesel (including biodiesel blends up to B100). Engineered with a superior formulation resistant to fuel, fire, and aging, this hose features a unique "Barrier Liner" that prevents fuel from direct contact with rubber, enhancing durability and performance.

Applications:

  • Marine Fuel Hose (distribution, return, vent, and transfer)
  • Compatible with all marine fuels including gasoline, alcohol blends (CE-10), diesel, and biodiesel

Specifications:

  • Inner Diameter: (inch) 5/16" | (mm) 7.92
  • Outer Diameter: (inch) 0.611 | (mm) 15.5
  • Burst Pressure: (psi) 400 | (mpa) 2.76
  • Working Pressure: (psi) 100 | (mpa) 0.69
  • Bend Radius: (inch) 1.75" | (mm) 44.5
  • Weight: (lb/100 ft.) 13.3 | (kg/m) 0.198
  • Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10)

  • Sold by the foot
  • Exceptional resistance to fuel permeation and fire
  • Excellent bend-ability for easy installation
  • NMMA Type Accepted & CE certified
