Blue Sea 5024 4-Gang Battery Terminal Fuse Block ST ATO/ATC and Cover

MFG No: 5024
SKU No: DU0TFG0QN0
UPC: 632085050245
MFG. Name: Blue Sea Systems
Available: 17
Condition: New

$30.54


Blue Sea Systems ST Blade Battery Terminal Mount Fuse Block Kit

Model: 5024
  • Mounts on the battery terminal stud
  • Screw terminals for securing wires
  • Nylon insulated ring terminals included for each screw terminal
  • Accepts small format circuit labels
  • Insulating cover meets ABYC/USCG insulation requirements
  • Ignition Protected—meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
  • Includes a 4-circuit negative busbar
  • Includes write on labels
  • Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals
Specifications
Circuits4
Maximum Amperage100A per block
30A per circuit
Maximum Voltage32V DC
Bus MaterialTin-Plater Copper C11000
Mounting Hole3/8" (M10) Stud
Screw Terminal Torque18 in-lb (2.03 Nm)
Screw Terminal Type#8-32
Weight0.50lb (0.23 kg)

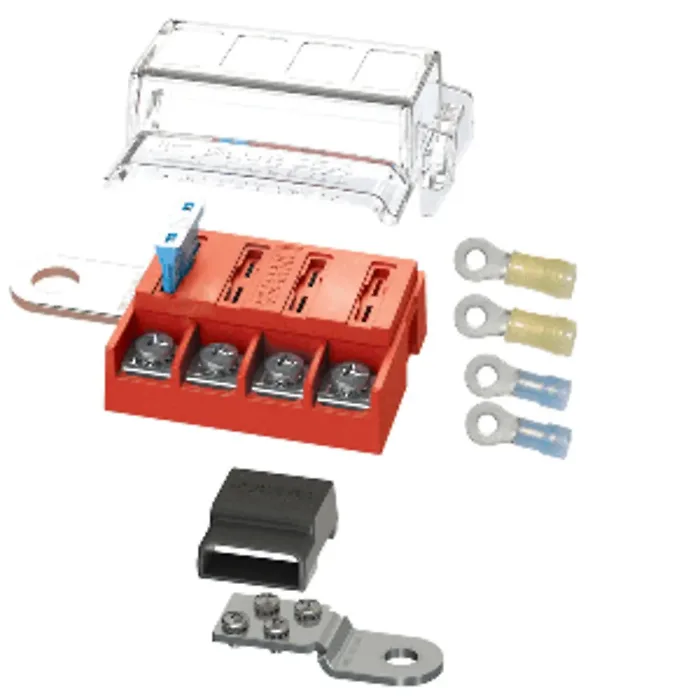

ST-Blade Battery Terminal Mount Fuse Block Kit

Features:
  • Easy to install 4 ATO/ATC fused circuits
  • Mounts on the battery terminal stud
  • Screw terminals for securing wires
  • Eight nylon ring terminals included
  • Insulating cover included

Kit Includes:
  • 1 - 5023 ST-Blade Battery Terminal Mount Fuse Block
  • Battery Terminal Mount BusBars

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
