Blue Sea Systems m-Series Mini On-Off Battery Switch with Key - Black

• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Studs accept 3/8 (M10) ring terminals
• 7/8 in (22mm) stud length accepts multiple cable terminals
• Blue Sea Systems one-piece terminal stud design never loosens over time
• Isolating cover with snap-on sections protects rear contacts
• Case design allows surface

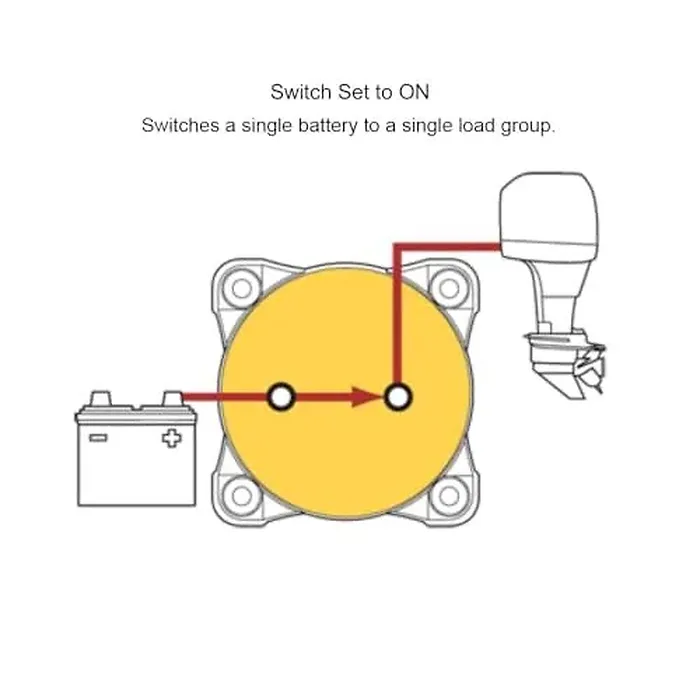

• Switch Type: Single Circuit ON-OFF
• Color: Black
• Switch Positions: 2
• Maximum Voltage: 48V DC
• Continuous Rating: 300A
• Intermittent Rating: 500A (5 min)
• Cranking Rating (10 sec): 1500A
• Cranking Rating (1 min): 775A
• Battery Inputs: 1
• Cable Clearance for 4/0 AWG Cables: 1.12in (28.45 mm)
• Mounting Holes: Accept #10 Screw
• Terminal Stud Size: 3/8"-16 (M10)
• Terminal Stud Torque: 120 in-lb (13.56 Nm)
• Weight: 0.62lb (0.28 kg)
