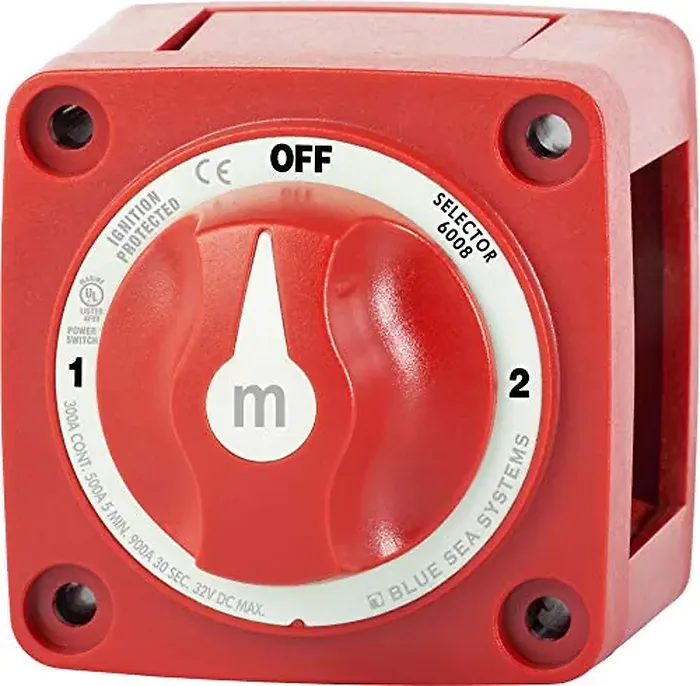

Blue Sea 6008 M-Series Battery Switch 3 Position - Red

Name: 6008 Blue Sea 6008 M-Series Battery Switch 3 Position - Red
Brand: Blue Sea Systems
SKU: LO914M79RA
Price: 60.88 USD
Availability: InStock

MFG No: 6008
SKU No: LO914M79RA
UPC: 632085060084
MFG. Name: Blue Sea Systems
Available: 12
Condition: New

$44.44

Blue Sea Systems m-Series Selector 3 Position Battery Switch - Red

Model: 6008-BSS

Tin-plated copper studs for maximum conductivity and corrosion resistance
Studs accept 3/8" (M10) ring terminals
7/8" (22mm) stud length accepts multiple cable terminals
Blue Sea Systems one-piece terminal stud design never loosens over time
Isolating cover with snap-on sections protects rear contacts
Case design allows surface or rear panel mounting
Waterproof — rated IP66 from water projected in powerful jets
One-piece stainless flange nuts ensure safe and secure connections
Breakout tabs allow wire access in any direction
Ignition protected—safe for installation aboard gasoline powered boats

Switches a single battery to a single load group.

Specifications

Switch Type	Selector 3 Position
Color	Red
Switch Positions	3
Battery Combine	No
Alternator Field Disconnect	No
Maximum Voltage	32vDC
Stud Size	3/8"
Terminal Stud Torque	120 in-lb (13.56 Nm)
Continuous Rating	300A
Intermittent Rating	500A (5 min)
Cranking Rating 30 sec	900A
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.12in (28.45 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm )
Mounting Holes	Accept #10 Screw
Stud Material	Tinned Copper
Stud Torque	120 in-lb (13.56 Nm)
Terminal Stud Size	3/8" - 16 (M10)
