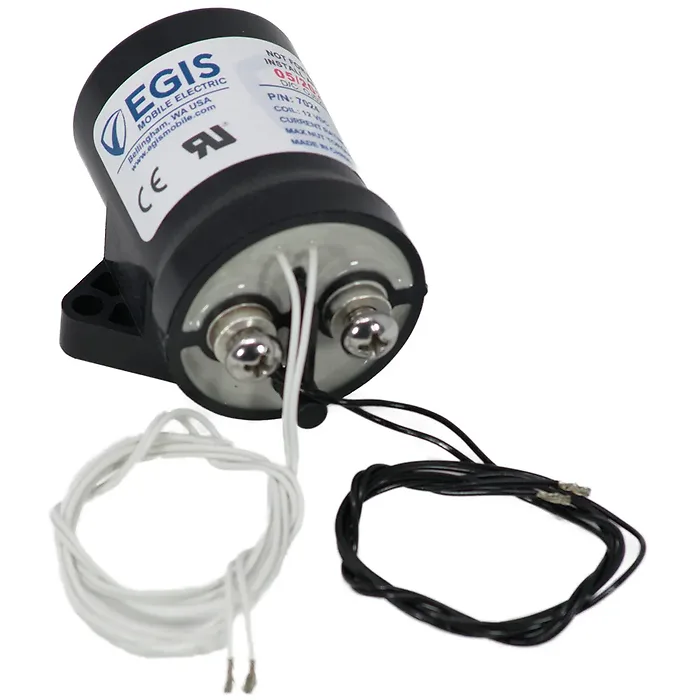

100A Contactor, 12V with Auxiliary Contacts

This robust 100A Egis contactor is designed for efficient installation by eliminating the need for bulky cable runs to manual switches. It allows for reliable remote switching of high-amperage engines and auxiliary loads, featuring a convenient side mount.

Applications:

• Durable construction ensures operational reliability over the lifespan of your installation with a hermetically sealed design to protect against dust and moisture.
• Compatible with 12 or 24 Vdc control voltage applications while also accommodating higher voltage switching up to 48 V.
• Optional auxiliary contacts provide remote status indication, ensuring clear confirmation of relay activation.

Specifications:

• Continuous Current Rating: 100 Amps
• Operating Control Voltage: 8-16 VDC
• Ingress Protection Rating: IP67/IP69K
• Ignition Protection Compliance: ISO-8846 / UL 1500
• Minimum Operating Temperature: -40°C
• Maximum Operating Temperature: 85°C

• Protected ignition suitable for installation in areas with potential explosive gases
• High Electrical Switching Endurance with up to 6,000 cycles at 100A / 350V and 100,000 cycles at 100A / 14V
• High Interrupt Current Capability allows safe operation in locked starter situations (up to 1,250 A @ 14 Vdc)
• Sturdy construction utilizing high-temperature materials and stainless steel self-locking hardware
• Includes a 4-Year Industry Leading Warranty
