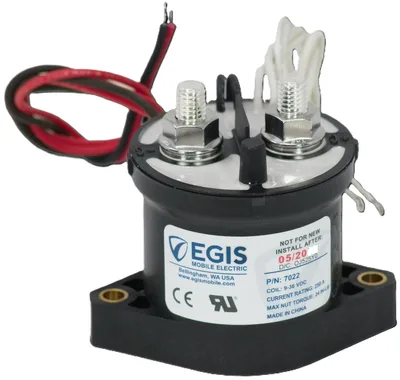

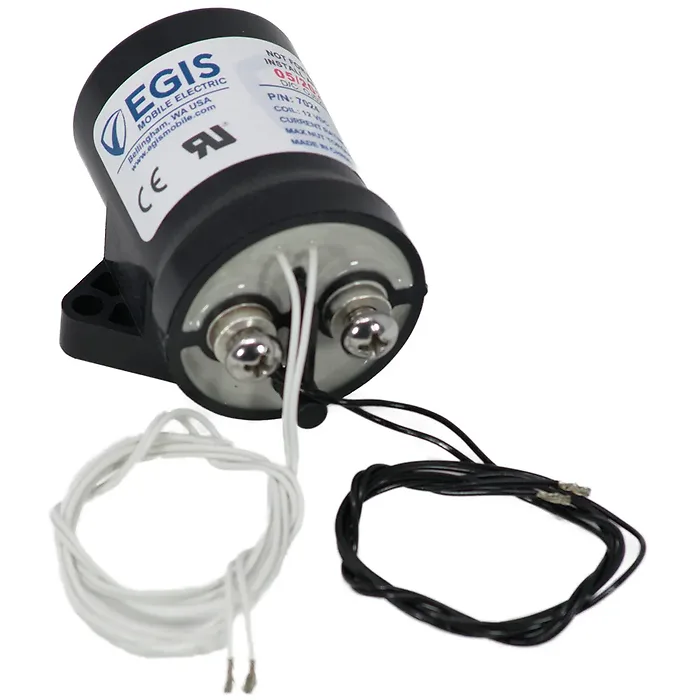

100A Contactor, 24V with Auxiliary Contacts

This Egis 100A contactor is designed to reduce installation costs and weight by eliminating large cable runs to manual switches, enabling robust remote switching of high-ampere engines and auxiliary loads. Featuring a side mount, it is ideal for various applications.

Applications:

• Guaranteed reliable operation throughout the installation's lifetime with a hermetically sealed design that protects against dust and moisture ingress.
• Compatible with control voltage applications of 12 or 24 Vdc, and able to handle higher switching voltages up to 48 V and beyond.
• Optional auxiliary contacts provide positive confirmation of relay on/off states, enabling remote status indication.

Specifications:

• Continuous Current (Amps): 100
• Operation Control Voltage: 16-28 VDC
• Ingress Protection: IP67/IP69K
• Ignition Protection: ISO-8846 / UL 1500
• Minimum Operating Temperature: -40°C
• Maximum Operating Temperature: 85°C

• Ignition protection ensures safe installation in potentially explosive environments.
• High electrical switching endurance with 6,000 cycles at 100A/350V and 100,000 cycles at 100A/14V.
• High interrupt current capability allows safe operation even in locked starter situations (up to 1,250 A @ 14 Vdc).
• Durable construction with a sealed device and high-temperature materials, making it suitable for engine compartments.
• Backed by a 4-year industry-leading warranty.
