XD Series ACR-Relay - Compact & Efficient Design

This innovative Egis relay is designed to save space and reduce weight by 35-75% using advanced bi-stable solenoid technology and integrated solenoid assemblies. It efficiently manages battery charge across two sources while ensuring isolation in low-charge situations, thus enhancing operational efficiency and reliability.

Applications:

• Manage multiple engines or independent charging systems with separate start inputs for optimal charging performance and source isolation when necessary.
• Expandable with link and cross-link busbars for additional relays, compatible with dual, triple, or single battery systems using standard busbar accessories.

Specifications:

• Total Continuous Current: 500 Amps
• Max Cranking Current: 1500 Amps
• Mechanical Switching Life: 1,000,000 cycles
• Voltage Range: 8-36 VDC
• Off-State Current Draw: 1.3 mA
• State Change Current: 5A at 12 VDC; 3A at 24 VDC

Focal Features:

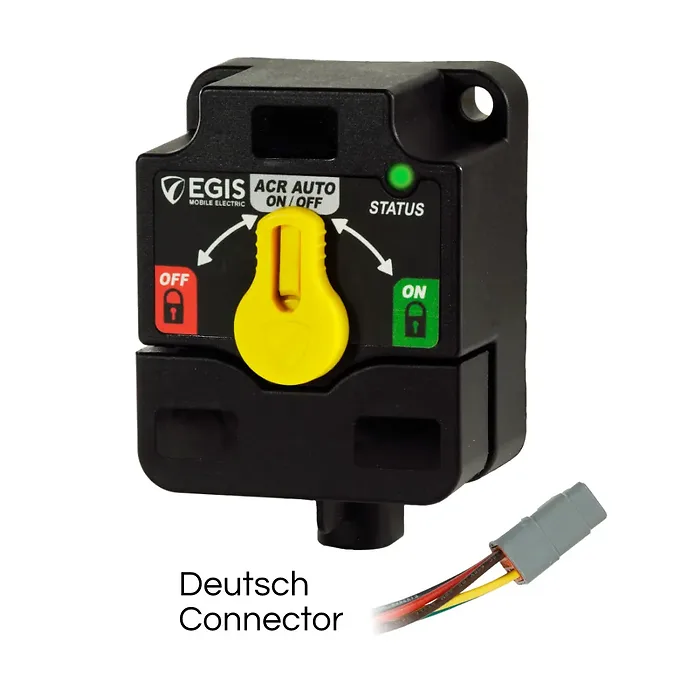

• Front-facing LED status display for visible device status.
• 3-position manual override for manual relay control.
• Includes a 40 circuit label sheet for easy identification.
• Protective cover to prevent short circuits.
• Durable construction with corrosion-resistant stainless hardware.
• Programmable via dip switches beneath the protective cover.
• Compact design without performance compromise.
• Integrated Gortex venting for pressure regulation in harsh conditions.
