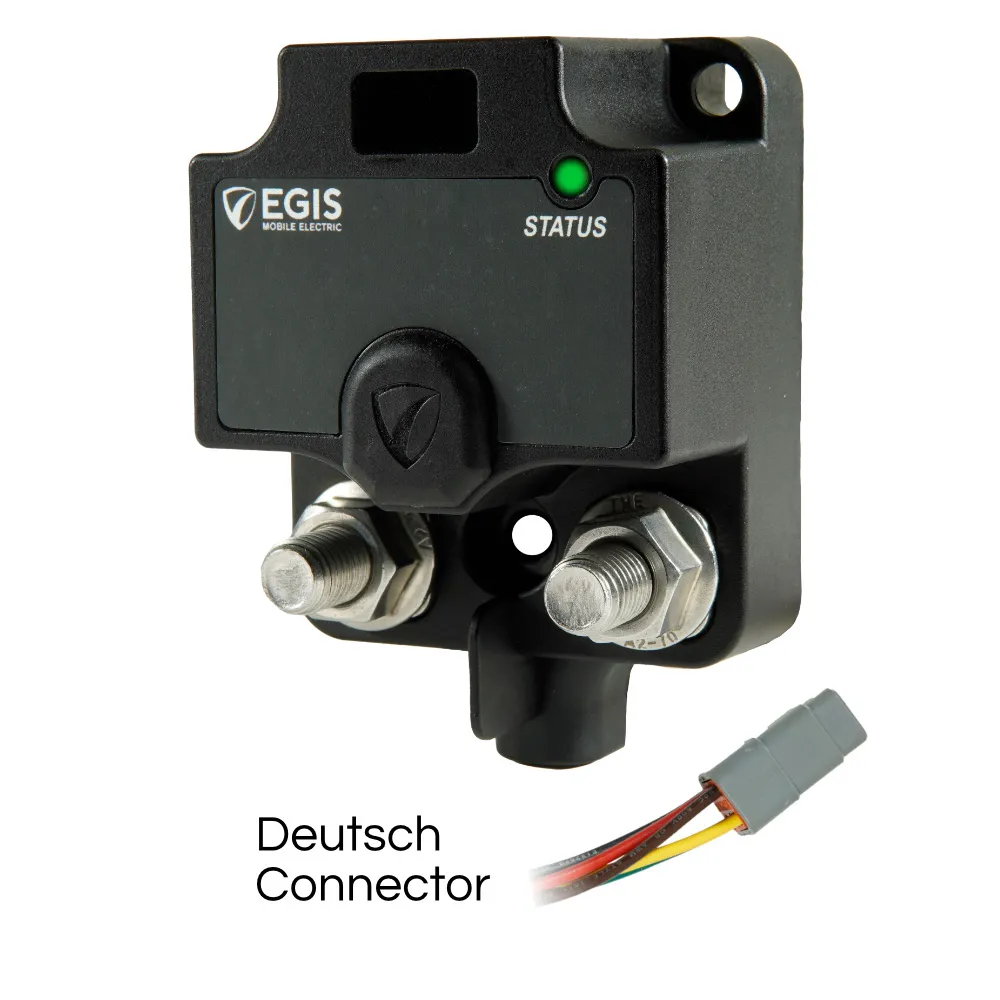

XD Series Compact Dual Battery Relay - DTM Connector

This innovative Egis relay offers a space-saving design with a bi-stable solenoid mechanism that significantly reduces both mounting space and weight. With the capability of sharing charging duties between two batteries, this relay effectively prevents dead-start situations by isolating batteries when no charge sources are present.

Applications:

• Supports multiple engines or charge systems, featuring dual start or isolation inputs to enhance charging performance.
• Compatible with additional XD relays, supporting various battery system configurations using standard busbar interconnect accessories.

Features:

• Durably constructed and sealed to IP67/IP6K9K standards, suitable for installation in various conditions; includes stainless steel cable lug studs and large mounting holes for easy installation.
• Includes a user-friendly manual control option for improved awareness of the relay's state, facilitating easy overriding capabilities.
• Programmable via dip switches allowing for customized functionality tailored to individual OEM and installer needs.
• Plug-and-play compatibility with legacy products ensures seamless integration with existing systems.
• Offers up to 90-95% lower off-state current compared to similar products, optimizing efficiency.

• Front-Facing LED Indicator: Easy-to-read status display with remote LED replication.
• 3-Position Manual Override: Lockable knob allows for intentional relay activation or deactivation.
• 40 Circuit Label Sheet: Included weatherproof labels simplify identification of circuits and relays.
• Protective Terminal Cover: Safeguards against accidental shorts.
• Stainless Hardware: Ensures resistance to corrosion and durability.
• Easy Programmability: Convenient dip switch settings for simple adjustments.
• Compact Design: High amp capacity in a reduced footprint for minimal installation space requirements.
• Integrated Ventilation: High-quality vents prevent moisture buildup, ensuring longevity in harsh environments.
