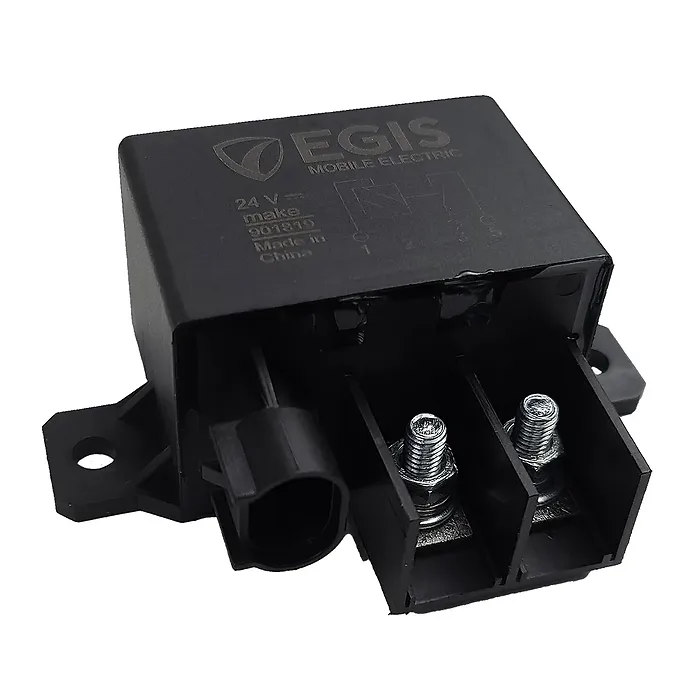

24V Automotive Relay, 150A with Resistor

This durable 24V relay is designed for automotive applications and serves as an industry-standard drop-in replacement for Tyco/Amp models. It efficiently manages high-amp electrical currents in environments that experience extreme temperatures and moisture.

Applications:

• Protects resistor circuits by preventing flyback voltage from interfering with sensitive control signals, ideal for delicate electrical systems.
• High intermittent amp capacity of 300 amps for short bursts (up to 3 seconds), making it suitable for temporary high-start-up current demands.
• Sealed automotive-grade connectors enhance moisture and dust protection for control circuitry.
• Rated for high temperatures up to 125C/257F, suitable for installation in engine bays and low-ventilation environments.

Specifications:

• Intermittent Current (3 seconds): 300 Amps
• Temperature Rating (Low/High): -40°C to 125°C
• Max Continuous Current: 180 Amps at 23°C
• Electrical Endurance: 1,000,000 cycles
• On State Current Draw at 24 VDC: 163 mA
• Operating Voltage: 17.6-32 VDC

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit P65Warnings.ca.gov.

• Robust construction with IP54 ingress protection, ensuring durability.
• Easy installation with dual mounting holes for ¼-20”/M6 1.25 bolts or #14 screws.
• Designed with high-quality materials for superior performance, rated for 100,000 electrical switching cycles.
• Enhanced shock and vibration protection for reliability and long service life.
