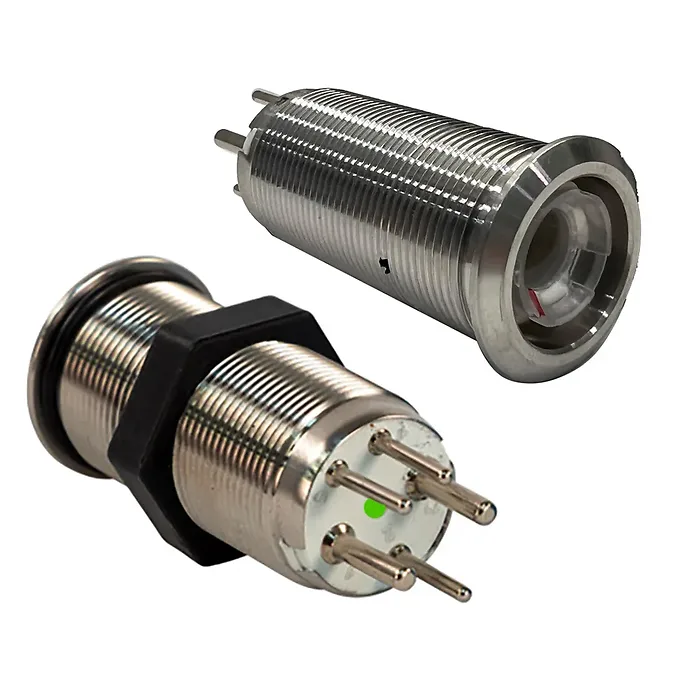

Marine 19mm LED Push Button Switch

The 19mm Marine Grade Push Button Switch is designed for compact control solutions in rugged environments. Crafted from corrosion-resistant materials and rated IP69K for waterproofing, this switch is ideal for marine and outdoor use, ensuring durability against environmental stress.

This switch features intuitive LED indicators that glow soft blue for backlighting and bright red when activated, providing immediate visual feedback of the power status. With a rating of 15 amps for single channel use and 7.5 amps per channel in dual channel configurations, it effectively manages high current loads.

Each switch includes a customizable actuator for personal preference, ensuring visibility in diverse lighting conditions. It’s perfect for boat builders, marine technicians, and electrical system upgrades where space and durability are paramount.

Specifications:

• Switch Rating: 15A/12-24VDC
• Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC
• Mechanical Life: 50,000 Cycles
• Electrical Life: 10,000 Cycles
• Dimensions: View Dimensional Drawings
• Material: Nickel Plated Brass/Stainless Steel
• LED Color: Blue/Green/Red

Installation:

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button, which are color coded for safety, and then connect the 2 contacts for the LED.

• Compact 19mm design for tight spaces
• IP69K waterproof rating for maximum durability
• Intuitive LED feedback: blue for off, red when active
• Customizable actuator to suit individual styles
• Ideal for high current applications up to 15 amps
