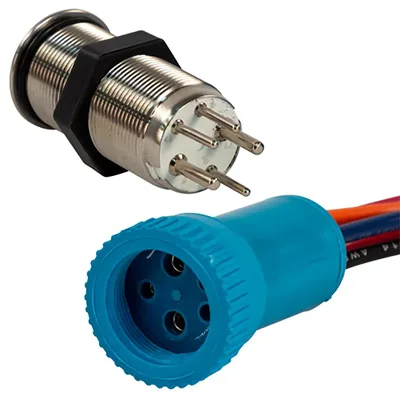

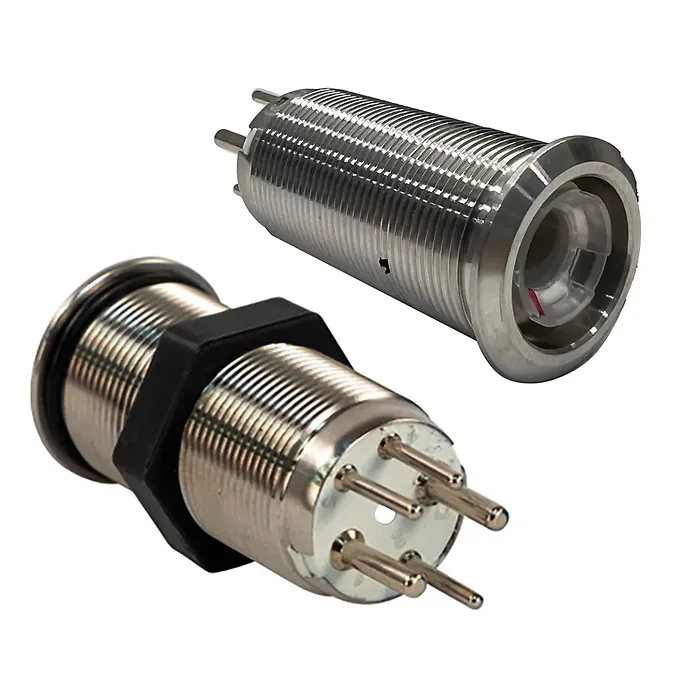

19mm Marine Push Button Switch - LED

The 19mm Marine Grade Push Button Switch is designed for efficient control in compact areas, making it perfect for rugged environments. It is constructed from stainless steel with an IP69K waterproof rating, ensuring resistance to the harsh conditions of marine applications.

This switch offers reliable feedback with its intuitive LED indicators, featuring soft blue backlighting and bright red signals when activated. Capable of handling up to 15 amps in single-channel configurations, the switch guarantees dependable performance over time.

Its customizable actuator allows for personal styling and improves usability throughout different lighting conditions. Ideal for marine applications, it is perfect for boat builders and technicians looking to optimize electrical systems in confined spaces.

Specifications:

• Switch Rating: 15A/12-24VDC
• Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC
• Mechanical Life: 50,000 Cycles
• Electrical Life: 10,000 Cycles
• Dimensions: View Dimensional Drawings
• Material: Nickel Plated Brass/Stainless Steel
• LED Color: Blue/Green/Red

Installation:

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience) and the 2 contacts for the LED illumination.

• Compact and rugged design for marine use
• IP69K waterproof rating for extreme conditions
• Customizable actuator for personal preference
• Reliable LED backlighting for visibility
• High current handling with consistent performance
• Easy installation with color-coded contacts
