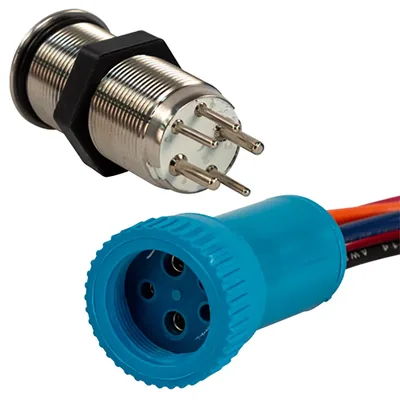

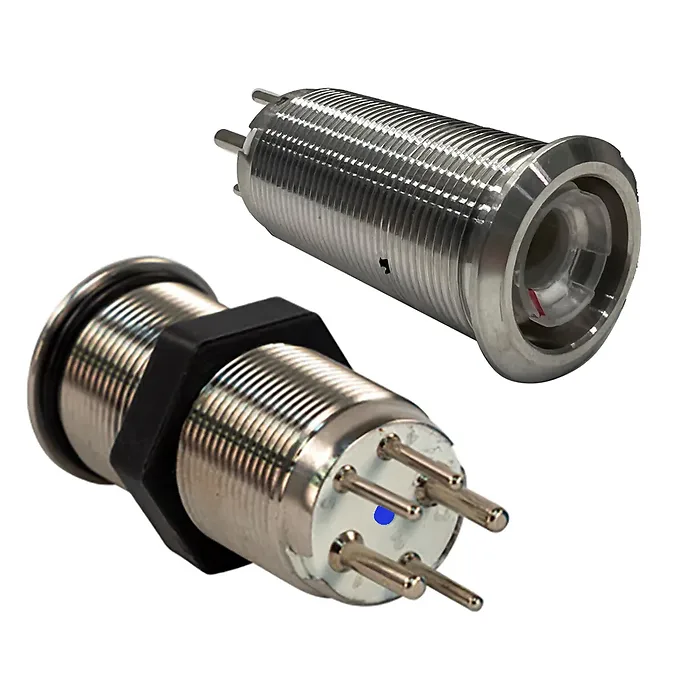

19mm Waterproof Push Button Switch - LED

The 19mm Inrush Push Button Switch is designed for demanding marine applications. Constructed with corrosion-resistant SS316 stainless steel and an impressive IP69K waterproof rating, it is perfect for outdoor environments and harsh conditions.

This switch provides clear feedback with built-in LED indicators, glowing softly in blue when inactive and bright red when activated, ensuring you can easily monitor power status at a glance. Rated for 15 amps in single channel or 7.5 amps per channel for dual configurations, it consistently manages high current loads for reliable performance.

Featuring a fully detachable actuator, this switch is customizable to fit your preferences. The backlighting allows for visibility in all lighting conditions, making it an excellent choice for boat builders, marine technicians, and anyone working in tight spaces where durability is crucial.

Specifications:

• Switch Rating: 15A/12-24VDC
• Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC
• Mechanical Life: 50,000 Cycles
• Electrical Life: 10,000 Cycles
• Material: Nickel Plated Brass/Stainless Steel
• LED Color: Blue/Green/Red

Installation:

To install, drill a 19mm hole into any material up to 6mm thick. Connect the three contacts for the button (color-coded for safety) and then connect the two contacts for the LED.

• Compact 19mm design for tight spaces
• IP69K waterproof rating for durability
• Customizable actuator for personalization
• LED indicators for clear power status
• High current handling capacity
• Ideal for marine and outdoor applications
