22mm Waterproof Push Button Switch with LED Indicators

This sleek, stainless-steel push button switch adds a modern touch to any dashboard. It features a "Nav/Anc" contact for versatile functionality.

The design, combined with an included gasket, ensures an exceptional waterproof rating of IP69K. The switch shines with a blue LED backlight for visibility at night, switching to red when activated, providing clear status indication.

Specifications:

• Function: Nav/Anc
• Off/1st On: Blue/Green
• 2nd On: Red
• Rear Mark Page: White dot
• Switch Rating: 15A/12 – 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation Instructions:

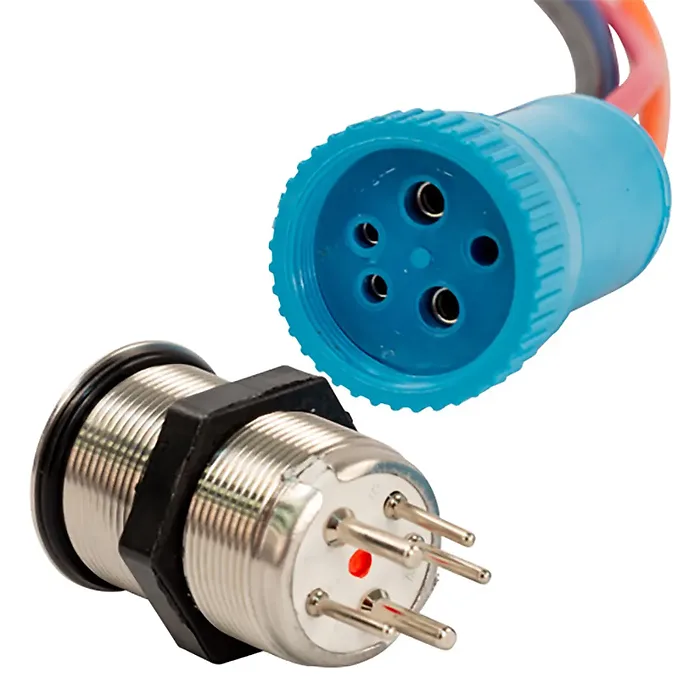

To install, drill a 22mm hole into any material up to 6mm thick. Connect the three contacts for the button (color-coded for safety) and the two contacts for the LED.

• Stainless steel construction for durability
• IP69K waterproof rating
• Color-coded connections for easy installation
• 50,000 mechanical life cycles
• 10,000 electrical life cycles
