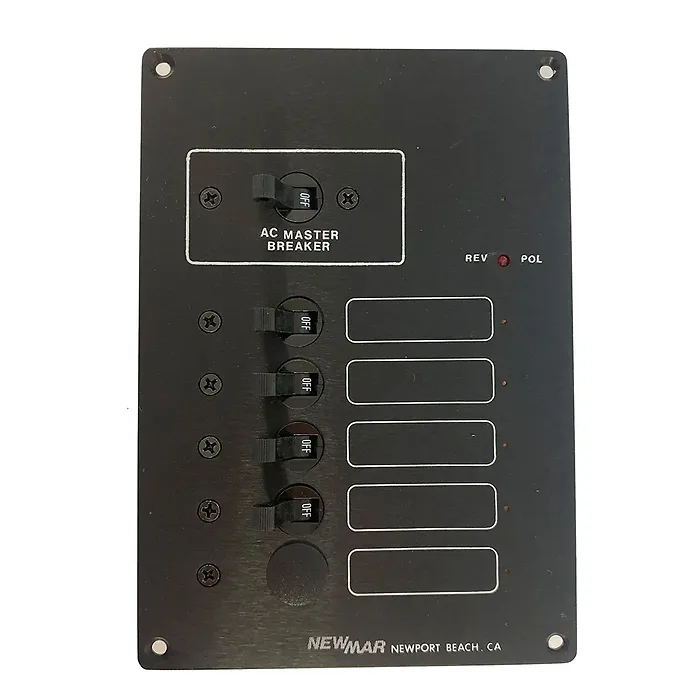

AC-IX Control and Protection Panel

The AC-IX Panel is essential for managing and safeguarding AC power when connected to shore power or generators. It includes a double-pole master breaker equipped with a power-on indicator to protect both the hot and neutral legs of the AC circuit. A reverse polarity indicator warns users when wiring is incorrect, presenting a potential shock hazard.

This panel features a 30 amp master breaker (optional configurations for 15A or 50A available), 5 branch circuits with standard configurations for 1-10A, 2-15A, and 1-20A circuits. An LS-I label set is included for easy identification.

Specifications:

• Cut-Out Dimensions: 4 x 6 inches (10.2 x 15.2 cm)
• Weight: 2 lbs.

Note: This product cannot be returned to the original point of purchase. Please reach out to the manufacturer directly for any issues or concerns.

• Double-pole master breaker with power-on indicator
• Reverse polarity warning light for safety
• 30 amp master breaker with optional configurations
• 5 branch circuit capacity
• Standard configurations for various branch circuit needs
• LS-I label set included
