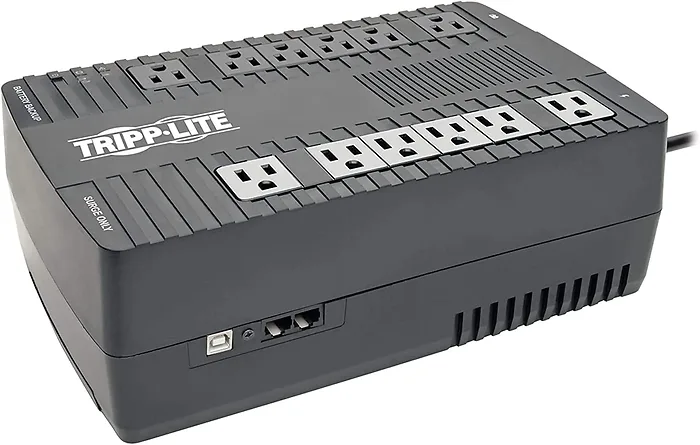

The line-interactive AVR750U UPS system with AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The 12-outlet 120V battery backup is ideal protection for your home office, media center or commerce components, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment.

• UPC CodeL: 037332211484
• UPS Type: Line-Interactive
• Input Phase: Single-Phase
• Rated input current (Maximum Load): 10A
• Nominal Input Voltage(s) Supported: 120V AC
• UPS Input Connection Type: 5-15P
• Input Circuit Breakers: 10A
• UPS Input Cord Length (ft.): 5
• Recommended Electrical Service: 15A 120V
• Output Capacity (VA): 750
• Output Capacity (kVA): 0.75
• Output Capacity (Watts): 450
• Output Capacity (kW): 0.45
• Nominal Voltage Details: 120v nominal output in battery mode
• Frequency Compatibility: 50 / 60 Hz
• Output Voltage Regulation (Line Mode): 120V (+6%/-12%)
• Output Voltage Regulation (Battery Mode): 120V (+-10%)
• UPS Output Receptacles (Surge Suppression Only): 6 UPS outlets, 6 surge-only outlets
• Output AC Waveform (AC Mode): Pure sine wave
• Output AC Waveform (Battery Mode): PWM sine wave
• Nominal Output Voltage(s) Supported: 110V; 115V; 120V
• Output Receptacles: (12) 5-15R
• Battery Type: Valve Regulated Lead Acid (VRLA)
• Runtime Full Load (min.): 3 min. (450W)
• Runtime Half Load (min.): 11 min. (225W)
• DC System Voltage (VDC): 12
• Battery Recharge Rate (Included Batteries): 8 hours (10% to 90%)
• Battery AccessBattery access door
• Internal UPS Replacement Battery Cartridge: RBC51
• Battery Replacement Description: Replaceable internal batteries (see manual)
• Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 89 to 145
• Overvoltage Correction: Input voltages between 128 and 145 are reduced by 15%
• Undervoltage Correction: Input voltages between 89 and 108 are boosted by 18%
• Switches: Power off/on switch
• Audible Alarm: UPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace-battery conditions
• LED Indicators: 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions
• UPS AC Suppression Joule Rating: 316
• UPS AC Suppression Response Time: Instantaneous
• UPS Dataline Suppression: 1 line TEL/DSL or Ethernet
• UPS Dataline Suppression Details: Set of two 8 position RJ connectors protect either a single 10BaseT connection (pins 1,2,3 & 6; 7.5V clamping) or a single TEL/DSL connection (pins 4-5; 260V clamping)
• EMI / RFI AC Noise Suppression: Yes
• Primary Form Factor: Desktop
• Installation Form Factors Supported with Included Accessories: Tower; Ultra-compact desktop; Wallmount
• Primary UPS Depth (mm): 305
• Primary UPS Height (mm): 105
• Primary UPS Width (mm): 190
• Shipping Dimensions (hwd / in.): 10.71 x 6.30 x 15.00
• Shipping Weight (lbs.): 16.72
• UPS Housing Material: ABS
• UPS Power Module Dimensions (hwd, in.): 4.14 x 7.48 x 12
• UPS Power Module Weight (kg): 7.18
• UPS Power Module Weight (lbs.): 15.84
• Unit Weight (lbs.): 15.840
• Operating Temperature Range: 32? to 104?F (0? to 40?C)
• Storage Temperature Range: 5? to 113?F (-15? to 45?C )
• Relative Humidity: 0 to 90%, non-condensing
• AC Mode BTU / Hr. (Full Load): 41
• AC Mode Efficiency Rating (100% Load): >96%
• Operating Elevation (ft.): Up to 10,000 ft.
• Operating Elevation (m): Up to 3000m
• PowerAlert Software: For local monitoring via the UPS's built-in communication ports, download PowerAlert software at https://tripplite.eaton.com/products/power-alert
• Communications Cable: USB interface cable included
• WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
• Network Management Card Description: Network management not supported
• Communications Interface: USB (HID enabled)
• Transfer Time: 6 milliseconds typical (10 milliseconds max)
• Low Voltage Transfer to Battery Power (Setpoint): 89
• High Voltage Transfer to Battery Power (Setpoint): 145
• Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
• High Availability UPS Features: Automatic Voltage Regulation (AVR); Surge/noise protection
• Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS
• Grounding Lug: Includes side panel grounding lug
• Product Certifications: RETIE (Colombia); CSA (Canada); NOM (Mexico); UL 1778
• Product Compliance: RoHS; FCC Part 15 Class A (USA)
• Product Warranty Period (U.S. & Canada): 3-year limited warranty
• Connected Equipment Insurance (U.S., Canada & Puerto Rico): $100,000 Ultimate Lifetime Insurance

Product Tags

Tripp Lite by Eaton UPS 750VA 450W Line-Interactive UPS - 12 NEMA 5-15R Outlets AVR 120V 50/60 Hz USB Desktop/Wall Mount
