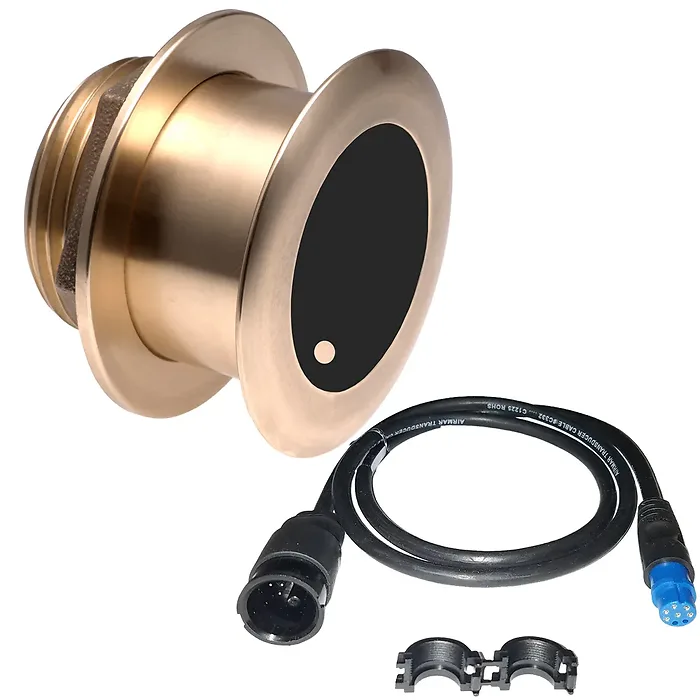

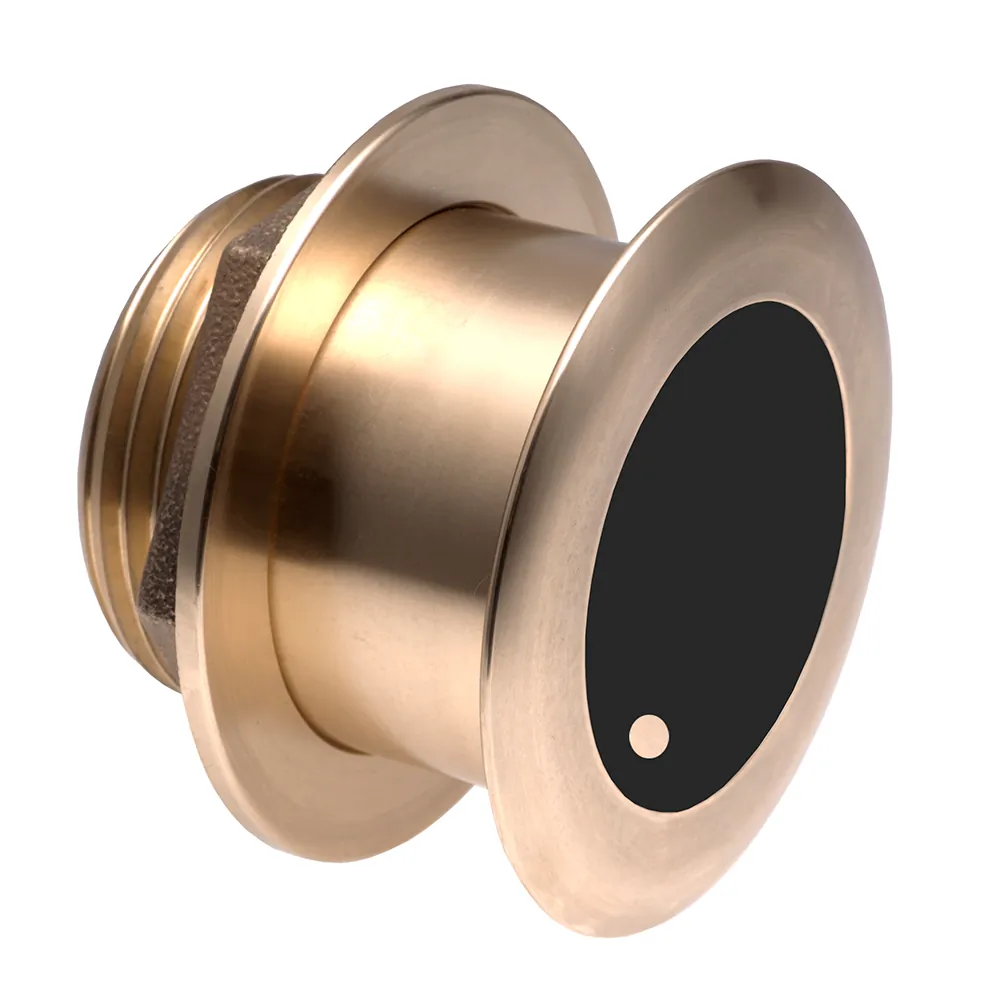

Airmar B175H 1kW 0° Thru-Hull Transducer

The Airmar B175H is a low-profile, bronze thru-hull transducer designed for Garmin systems. Perfect for smaller boats, its narrow beamwidth excels in shallow water, showcasing superior target separation and bottom detail. This CHIRP-ready transducer operates across frequencies of 130 to 210 kHz, providing up to 80 kHz of bandwidth for excellent performance in the water.

With Tilted Element™ technology, the transducer is installed flush to the hull, optimizing the angle for echo returns, ensuring enhanced sonar readings. The B175H is recommended for displacement and planing hulls, making it versatile for various boating applications.

• Compatible with Garmin 8-Pin Mix & Match Cable
• Depth and fast-response water-temperature readings
• High power rating of 1 kW with maximum depth capability of 304 m (1000')
• High frequency range of 130 to 210 kHz
• Narrow beamwidth of 10° to 6°
• 80 kHz total bandwidth for superior detail
• Flush-mounted, low-profile design for optimal speed performance
• Recommended for various hull types: planing, stepped, or displacement
• Durable bronze housing suitable for fiberglass or wood hulls
• Patented Xducer ID® technology for efficient identification
