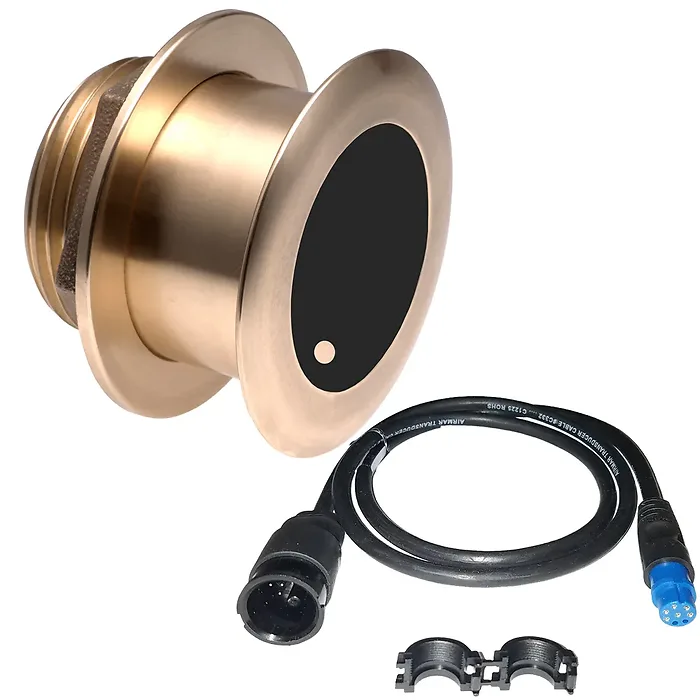

Airmar B175H Bronze 20 Degree Thru-Hull Transducer for Garmin

Airmar’s low-profile, Chirp-ready transducer is an ideal choice for smaller vessels such as center consoles. This transducer operates within a high-frequency band, delivering a narrow beamwidth that excels at locating fish around wrecks, reefs, and other underwater structures. Its high frequency provides remarkable target separation for both baitfish and schooling gamefish. With a capability of transmitting from 130 to 210 kHz, the B175H offers up to 80 kHz of total bandwidth in one unit, ensuring exceptional shallow-water performance and bottom detail.

The Tilted Element™ design allows the transducer's ceramic element to be fixed at a 20°, 12°, or 0° angle within the housing. By installing the transducer almost flush to the hull, the built-in tilt compensates for the hull's deadrise, positioning the element horizontally to maximize echo returns.

• Compatible with Garmin 8-Pin Mix & Match Cable for Chirp Transducers
• Depth and fast-response water temperature sensing capabilities
• 1 kW of power accommodating a maximum depth of 304 m (1000')
• High-frequency operation range of 130 to 210 kHz
• Beamwidth ranging from 10° to 6°
• 80 kHz of total bandwidth available from a single transducer
• Excellent shallow-water performance and clear bottom detail
• Low-profile, thru-hull design ensures good display resolution at speed when installed properly
• Recommended for various hull types including stepped, planing, or displacement
• Bronze housing suitable for fiberglass or wood hulls
• Also available in stainless steel (SS175H) for use in all hull materials
• Includes patented Xducer ID® technology
