Specifications
HDMI 1.3 and HDCP 1.2 compatible Resolutions:
480i/480p/720p/1080i/1080p Transmission distance up to 164ft (50m) Audio support:
2-channel Stereo audio HDMI cable distance:
up to 2M (Input and Output) IR frequency:
Supports 20KHz to 60KHz Power consumption:
Transmitter:
< 2W
Receiver:
< 2W Housing:
Metal Color:
Black Products:
Transmitting unit (TX):
Connector:
1x 19-pin HDMI, Type A, Female, Input
1x 8-pin, RJ45, Output
1x 3.5mm phone jack, IR output
1x Reset button Receiving unit (RX):
Connector:
1x 8-Pin, RJ45, Input
1x 19-pin, HDMI, Type A, Female, output
1x 3.5mm phone jack, IR input
1x Reset button Power adapter:
Input:
100-240VAC
Output:
5V DC, 1A
UL:
E335801, VI Environmental conditions:
Operating temperature:
32 to 122 degrees F
Storage temperature:
14 to 158 degrees F
Relative humidity:
5% to 90% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHS

Package contents

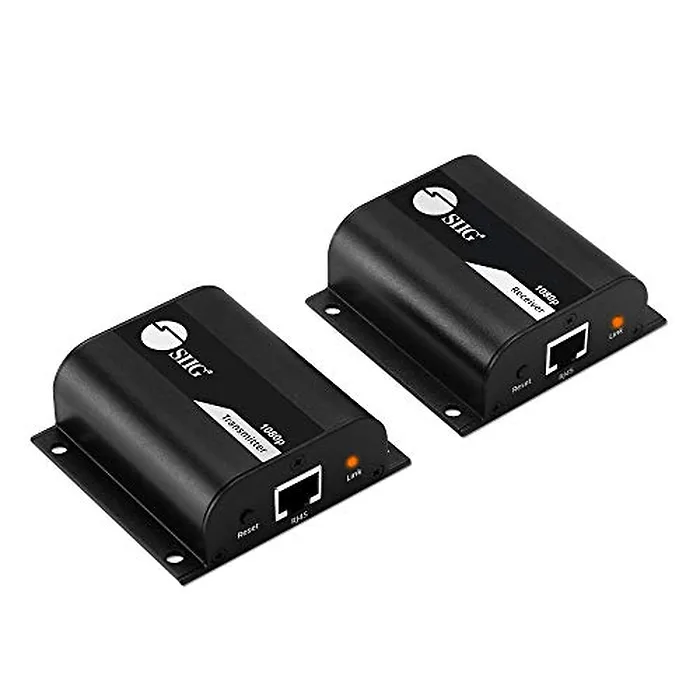

Full HD HDMI Extender with IR (1 TX and 1 RX unit)
IR Blaster cable (1pc)
IR Receiver cable (1pc)
Power adapter (2pcs)
User Reference Guide

Item Dimension (L inchxW inchxH inch)
3 x 1 x 3

Weight
1.00lb

Warranty Information
2 Years
