Specifications Compliant with HDMI 2.0a and DisplayPort 1.2a specifications Compliant with HDCP 1.4 and 2.2 Supports xvYCC, x.v.Color and Deep Color Supports 4K2K at 60Hz 4:4:4 8bits Supports 8-bit, 10-bit, and 12-bit Deep Color Video bandwidth:
18Gbps (single-link 600MHz) Resolution support:
720p/1080i/1080p/2160p Resolution up to 3840 x 2160 at 60Hz (4:4:4 8bit) Supports audio extraction via 3.5mm Stereo jack or Toslink 5.1ch (only one audio output can be used at a time) Supported audio formats:
HDMI:
PCM 2 / 5.1 / 7.1, Dolby 5.1 / 7.1, DTS 5.1 / 7.1
Toslink:
PCM2.0 and Digital 5.0
Stereo 3.5mm:
PCM2.0 ESD protection:
+/-15kV Air / +/-8kV Contact

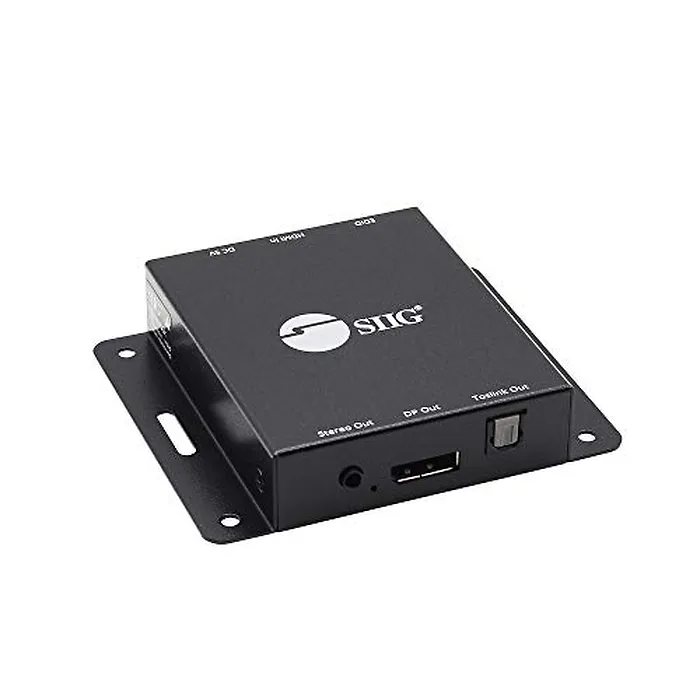

Metal housing with wall mount design Supports transmission distance (cable length):
4K at 60Hz:
Up to 10m (5m/In, 5m/Out)
1080p and 4K at 30Hz:
Up to 15m (5m/In, 10m/Out) EDID mode indicator LED:
Red:
3840x2160 at 60Hz
Green:
4096x2160 at 60Hz
Blue:
1080p at 60Hz
Yellow:
EDID learning, support 1920x1080 at 144Hz, 120Hz, 100Hz Product:
Color:
Black Housing material:
Metal Connector:
1x 19-Pin, HDMI, Type A, Female, Input
1x 20-Pin, DisplayPort, Female, Output
1x S/PDIF (Toslink), Audio, Output
1x 3.5mm, phone jack, Stereo audio, Output
1x 5-Pin, Micro USB, Female, Power Input
1x Push button, EDID selection Power adapter:
Input:
100-240VAC, 50/60 Hz
Output:
DC5V/2A
UL listed:
135856/Level: VI Environmental conditions:
Operating temperature:
32 to 104 degrees F
Storage temperature:
-4 to 140 degrees F
Relative humidity:
20 to 90% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHS
