264 FEET 80 METERS OVER SINGLE CAT6
Compliant with USB 2.0 specification
Supports USB 2.0 data transfer rate up to 480Mbps
DIP switch adjusts the cable skew for different length Cat6 cable
Integrated equalizer compensates for different cable types
Power LED indicators
ESD protection:
Air: +/-19kV
Contact: +/-12kV

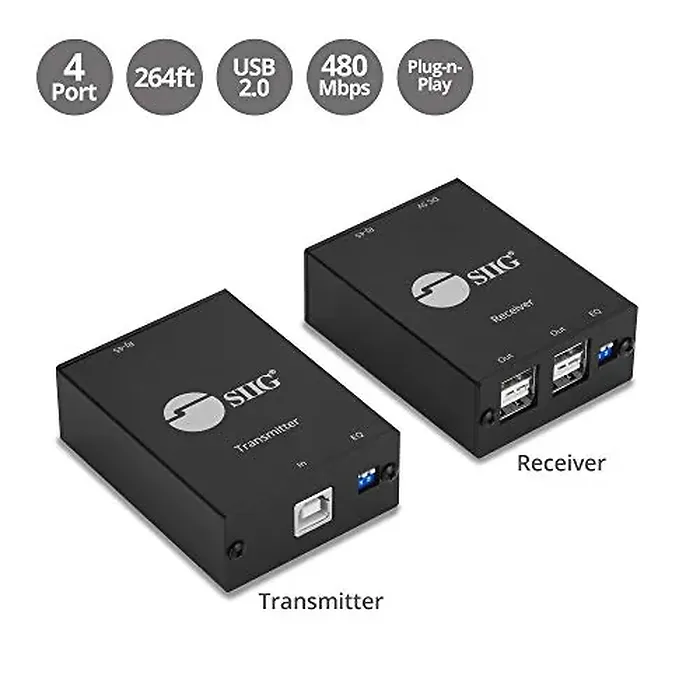

Transmitting unit (TX):
Color: Black
Housing: Metal
Connector:
1x 4-pin, USB Type-B, Female, Input
1x 8P8C with 2 LED indicators, RJ45, Female, Output
1x 2-pin DIP switch for cable equalization
Receiving unit (RX):
Color: Black
Housing: Metal
Connector:
1x 8P8C with 2 LED indicators, RJ45, Female, Input
4x 4-pin, USB Type-A, Female, Output
1x 2-pin DIP Switch for cable equalization
1x Power jack, power input
Power Adapter:
Input: 100-240VAC, 50/60Hz
Output: DC 5V/2A
UL listed: E135856 / Level: VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 20 to 90% RH (non-condensing)
TAA compliant
Certifications/Standards: FCC, CE, RoHS
Item Dimension (L"xW"xH")
3 x 1 x 3
Weight
1.00 LB
Warranty Information
3 years
