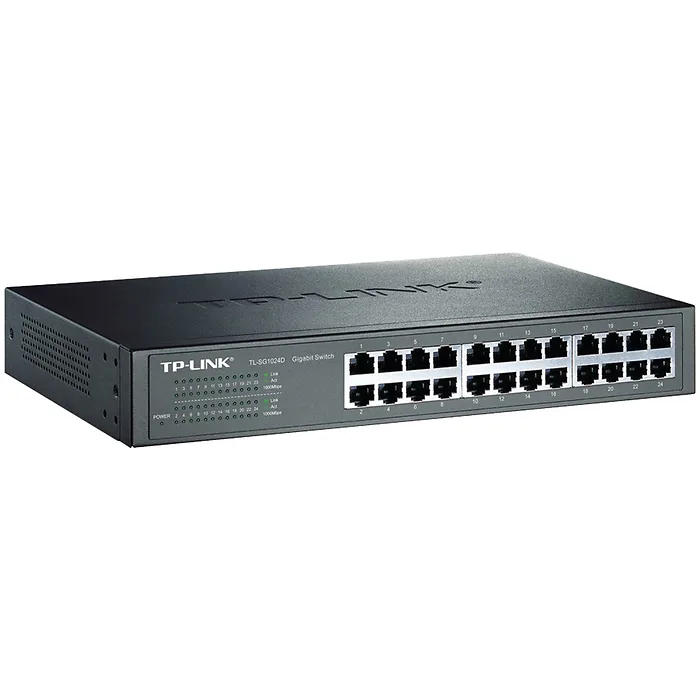

TP-Link's 24-Port Gigabit Desktop/Rack-Mount Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. Its 24 ports greatly expands your network capacity, enabling instant large files transferring.
Standards and Protocols
IEEE802.3, 802.3u, 802.3ab, 802.3x
CSMA/CD, TCP/IP Basic Function
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode Backbound Bandwidth
48Gbps MAC Address Table
8k Forwarding Rate
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-T: 1488000pps/port Transmission Method
Store-and-Forward Ports
24 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) Network Media
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m) LED Indicators
Power, Link/Act Dimensions (WDH)
11.67.11.7 in. (29418044 mm) Power
100-240VAC, 50/60Hz Weight
9 Warranty
2 Years
