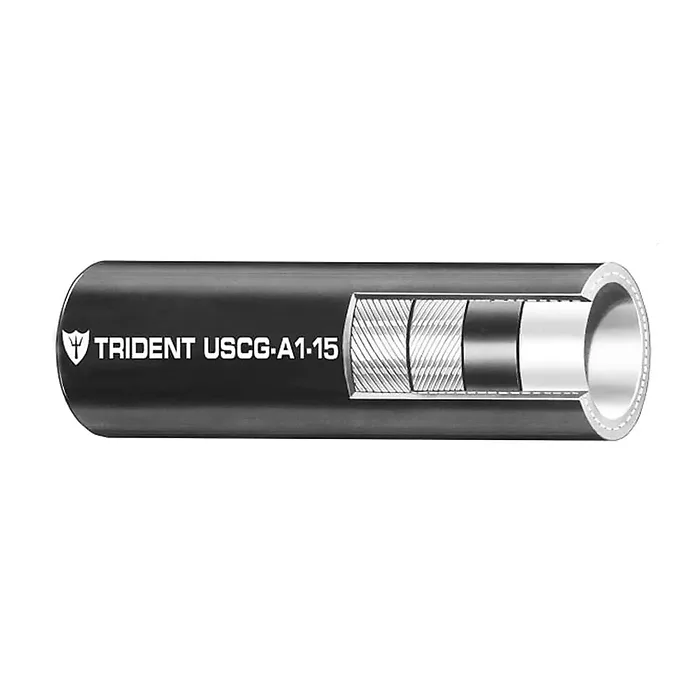

Trident Marine A1-15 Low Permeation Fuel Hose - 3/8"

Trident Marine A1-15 Low Permeation Fuel Hose - 3/8" - Sold by the Foot

This high-quality 3/8" low permeation fuel line is designed for both gasoline (including ethanol blends up to 85%) and diesel (including biodiesel blends up to B100). It features a unique barrier lining that prevents fuel from coming into direct contact with the rubber, ensuring superior performance and longevity.

Key Benefits:

• Exceptional resistance to fuel permeation, aging, fire, heat, cold, and ozone.
• Excellent bendability for easy installation.
• NMMA Type Accepted and CE certified for reliability.

Ideal Applications:

• Marine fuel hose for distribution, return, vent, and transfer needs.
• Suitable for all marine fuels including gasoline, alcohol blends (CE-10), diesel, and biodiesel.

Construction Details:

• Inner Tube: Nylon Internal Barrier and NBR
• Cover: NBR/PVC Blend
• Reinforcement: Polyester 2 spiral
• Temperature Range: -20°F to 212°F (-28°C to 100°C)

Specifications:

• Inner Diameter: 3/8" (9.50 mm)
• Outer Diameter: 0.681" (17.3 mm)
• Burst Pressure: 400 psi (2.76 mpa)
• Working Pressure: 100 psi (0.69 mpa)
• Bend Radius: 2" (50.8 mm)
• Weight: 15.6 lb/100 ft. (0.233 kg/m)
• Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10)

*The #365 series complies with ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and is EPA Certified for low permeation (Type A1-10).

• Sold by the foot
• Resistant to fuel, fire, and aging
• Excellent flexibility for installation
• Meets safety standards: NMMA Type Accepted, CE certified
